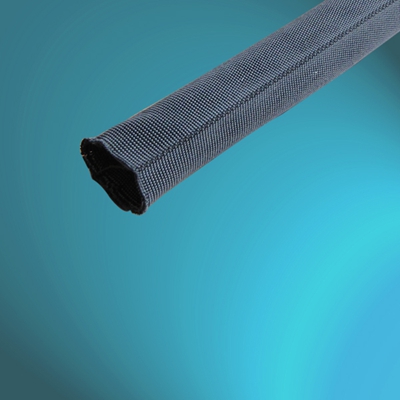

Multifilament & Non-Heat Shrink & Non-Expandable PA Braided Sleeving

MATERIAL:

POLYAMIDE   PA66 MULTIFILAMENT

COLOUR:

BLACK

FLAMMABILITY:

SELF-EXTINGUISHING   TO  UL94-V0

WORK TEMP:

-60ºC-160ºC

MELTING POINT:

256ºC

STANDARD:

UL   (File No. E317364) & RoHS & HALOGEN FREE

FEATURE:

THE   MATERIAL HAS EXCELLENT FLEXIBILITY, HIGH ABRASION AND FLAME RESISTANCE   PROPERTY, THE TIGHT WOVEN CONSTRUCTION PROVIDES CHEMICAL FLUID RESISTANCE AND     NOISE REDUCTION.

APPLICATION:

IDEAL   FOR PROTECTING HYDRAULIC PIPES, PLASTIC PIPES, RUBBER HOSE, WIRE HARNESSES   AWAY FROM DAMAGE AND ABRASION.

EASE   CODE

FLAT   WIDTH

ROUND   I.D.

WALL   THICKNESS

PACKING

(W)

m/roll

BS-PA-MF-20NE

20

12

1.1

100

BS-PA-MF-25NE

25

15

1.1

100

BS-PA-MF-30NE

30

19

1.1

100

BS-PA-MF-35NE

35

22

1.1

50

BS-PA-MF-40NE

40

25

1.1

50

BS-PA-MF-45NE

45

28

1.1

50

BS-PA-MF-50NE

50

31

1.1

50

BS-PA-MF-60NE

60

38

1.1

50

BS-PA-MF-70NE

70

44

1.1

50

BS-PA-MF-80NE

80

50

1.1

50

BS-PA-MF-90NE

90

57

1.1

50

BS-PA-MF-100NE

100

60

1.1

50

BS-PA-MF-115NE

115

70

1.1

50

BS-PA-MF-145NE

145

90

1.1

50

BS-PA-MF-176NE

176

110

1.1

50

BS-PA-MF-200NE

200

125

1.1

50
