BS-FG-IS
ES
70199090
| Quantity: | |
|---|---|

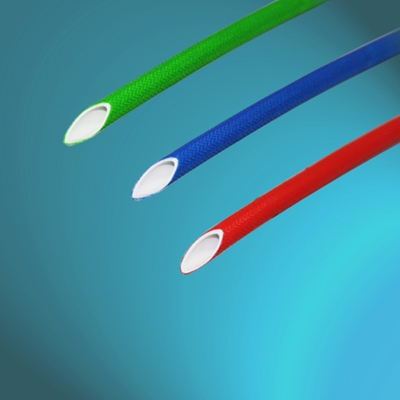

Inner Silicone Coated Fiberglass Cable Braided Sleeving
SPECIFICATIONS | |||
MATERIAL: | SILICONE RUBBER & FIBERGLASS | ||
COLOUR: | WHITE, RED, GREEN | ||
FLAMMABILITY: | SELF-EXTINGUISHING TO UL VW-1 | ||
WORK TEMP.: | -10℃ - 200℃ | ||
VOLTAGE: | 7kV | ||
STANDARD: | UL & RoHS & CSA | ||
FEATURE: | THE DUAL WALL SILICONE RUBBER FIBERGLASS SLEEVING (INNER FIBERGLASS WALL, OUTER RUBBER WALL) PRODUCED WITH THE PROCESS OF THERMAL AND VULCANIZATION, EXTRUDE TUBE AND WOVEN BY THE NON-ALKALI FIBERGLASS HAS EXCELLENT CHARACTERISTCS OF DIELECTRIC AND | ||
EASE CODE | INSIDE DIAMETER | WALL THICKNESS | |
NOMINAL | TOLERANCE | 7kV | |
BS-FG-IS-2.5 | 1.0-2.5mm | +0.20 - 0.00mm | 0.80mm ± 0.05mm |
BS-FG-IS-5..5 | 3.0-5.5mm | +0.30 - 0.00mm | 0.90mm ± 0.05mm |
BS-FG-IS-7 | 6.0-7.0mm | +0.35 - 0.00mm | 1.00mm ± 0.05mm |
BS-FG-IS-9 | 8.0- 9.0mm | +0.40 - 0.00mm | 1.10mm ± 0.05mm |
BS-FG-IS-12 | 10.0-12.0mm | +0.50 - 0.00mm | 1.25mm ± 0.05mm |
Inner Silicone Coated Fiberglass Cable Braided Sleeving
SPECIFICATIONS | |||
MATERIAL: | SILICONE RUBBER & FIBERGLASS | ||
COLOUR: | WHITE, RED, GREEN | ||
FLAMMABILITY: | SELF-EXTINGUISHING TO UL VW-1 | ||
WORK TEMP.: | -10℃ - 200℃ | ||
VOLTAGE: | 7kV | ||
STANDARD: | UL & RoHS & CSA | ||
FEATURE: | THE DUAL WALL SILICONE RUBBER FIBERGLASS SLEEVING (INNER FIBERGLASS WALL, OUTER RUBBER WALL) PRODUCED WITH THE PROCESS OF THERMAL AND VULCANIZATION, EXTRUDE TUBE AND WOVEN BY THE NON-ALKALI FIBERGLASS HAS EXCELLENT CHARACTERISTCS OF DIELECTRIC AND | ||
EASE CODE | INSIDE DIAMETER | WALL THICKNESS | |
NOMINAL | TOLERANCE | 7kV | |
BS-FG-IS-2.5 | 1.0-2.5mm | +0.20 - 0.00mm | 0.80mm ± 0.05mm |
BS-FG-IS-5..5 | 3.0-5.5mm | +0.30 - 0.00mm | 0.90mm ± 0.05mm |
BS-FG-IS-7 | 6.0-7.0mm | +0.35 - 0.00mm | 1.00mm ± 0.05mm |
BS-FG-IS-9 | 8.0- 9.0mm | +0.40 - 0.00mm | 1.10mm ± 0.05mm |
BS-FG-IS-12 | 10.0-12.0mm | +0.50 - 0.00mm | 1.25mm ± 0.05mm |
