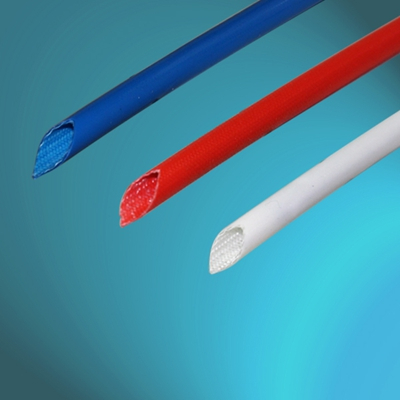

Outer Silicone Coated Fiberglass Braided Sleeving

MATERIAL:

FIBERGLASS & SILICONE RUBBER

COLOUR:

BLACK, GREY, WHITE, RED, GREEN

FLAMMABILITY:

SELF-EXTINGUISHING TO UL VW-1

WORK TEMP.:

-10℃ - 200℃

VOLTAGE:

4kV & 7kV

STANDARD:

UL & RoHS & CSA

FEATURE:

THE DUAL WALL FIBERGLASS SILICONE RUBBER SLEEVING (INNER FIBERGLASS WALL, OUTER RUBBER WALL) IS PRODUCED WITH BRAIDED FIBERGLASS SLEEVING COVERED BY SILICONE RUBBER THICK LAYER.   IT HAS BETTER INSULATION CHARACTERISTICS.

EASE CODE

INSIDE DIAMETER

WALL THICKNESS

NOMINAL

TOLERANCE

4kV

7kV

BS-FG-OS-2

0.5 - 2.0mm

+0.20 - 0.00mm

0.40mm ± 0.05mm

0.45mm ± 0.05mm

BS-FG-OS-3

2.5 - 3.0mm

+0.25 - 0.00mm

0.40mm ± 0.05mm

0.50mm ± 0.05mm

BS-FG-OS-5

3.5 - 5.0mm

+0.35 - 0.00mm

0.45mm ± 0.05mm

0.55mm ± 0.05mm

BS-FG-OS-9

6.0 - 9.0mm

+0.50 - 0.00mm

0.50mm ± 0.05mm

0.60mm ± 0.05mm

BS-FG-OS-12

10.0 - 12.0mm

+0.70 - 0.00mm

0.60mm ± 0.05mm

0.65mm ± 0.05mm
