BS-FG
ES
70199090
| Quantity: | |
|---|---|

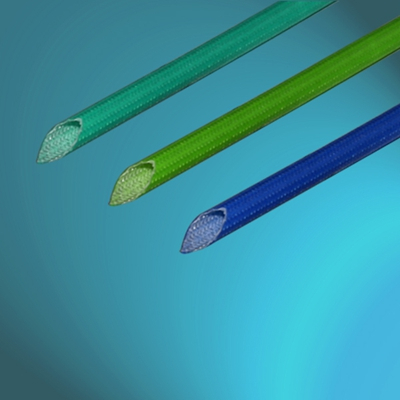

Standard Fiberglass Braided Sleevings
SPECIFICATIONS | ||||
MATERIAL: | FIBERGLASS COATED WITH SILICONE | |||
COLOUR: | BLACK, GREY, WHITE, RED, GREEN | |||
FLAMMABILITY: | SELF-EXTINGUISHING TO UL VW-1 | |||
WORKING TEMP.: | -10℃ - 200℃ | |||
VOLTAGE: | 2.5kV & 7kV | |||
STANDARD: | UL & RoHS & CSA | |||
FEATURE: | THE SINGLE WALL FIBERGLASS SLEEVING (BRAIDED NON-ALKALI FIBERGLASS) COATED WITH SPECIAL SILICONE RESIN AT HIGH TEMPERATURE HAS EXCELLENT CHARACTERISTICS OF DIELECTRIC, SELF-EXTINGUISHING, SOFTNESS AND ELASTICITY. | |||
EASE CODE | INSIDE DIAMETER | WALL THICKNESS | ||
NOMINAL | TOLERANCE | 2.5kV | 7kV | |
BS-FG-2.5ST | 0.5-2.5mm | +0.25-0.00mm | 0.20mm | 0.38mm |
BS-FG-4.5ST | 3.0-4.5mm | +0.30-0.00mm | 0.23mm | 0.45mm |
BS-FG-6ST | 5.0-6.0mm | +0.40-0.00mm | 0.28mm | 0.45mm |
BS-FG-9ST | 7.0-9.0mm | +0.55-0.00mm | 0.32mm | 0.50mm |
BS-FG-14ST | 10.0-14.0mm | +0.75-0.00mm | 0.40mm | 0.60mm |
BS-FG-25ST | 15.0-25.0mm | +0.85-0.00mm | 0.43mm | 0.64mm |
Standard Fiberglass Braided Sleevings
SPECIFICATIONS | ||||
MATERIAL: | FIBERGLASS COATED WITH SILICONE | |||
COLOUR: | BLACK, GREY, WHITE, RED, GREEN | |||
FLAMMABILITY: | SELF-EXTINGUISHING TO UL VW-1 | |||
WORKING TEMP.: | -10℃ - 200℃ | |||
VOLTAGE: | 2.5kV & 7kV | |||
STANDARD: | UL & RoHS & CSA | |||
FEATURE: | THE SINGLE WALL FIBERGLASS SLEEVING (BRAIDED NON-ALKALI FIBERGLASS) COATED WITH SPECIAL SILICONE RESIN AT HIGH TEMPERATURE HAS EXCELLENT CHARACTERISTICS OF DIELECTRIC, SELF-EXTINGUISHING, SOFTNESS AND ELASTICITY. | |||
EASE CODE | INSIDE DIAMETER | WALL THICKNESS | ||
NOMINAL | TOLERANCE | 2.5kV | 7kV | |
BS-FG-2.5ST | 0.5-2.5mm | +0.25-0.00mm | 0.20mm | 0.38mm |
BS-FG-4.5ST | 3.0-4.5mm | +0.30-0.00mm | 0.23mm | 0.45mm |
BS-FG-6ST | 5.0-6.0mm | +0.40-0.00mm | 0.28mm | 0.45mm |
BS-FG-9ST | 7.0-9.0mm | +0.55-0.00mm | 0.32mm | 0.50mm |
BS-FG-14ST | 10.0-14.0mm | +0.75-0.00mm | 0.40mm | 0.60mm |
BS-FG-25ST | 15.0-25.0mm | +0.85-0.00mm | 0.43mm | 0.64mm |
