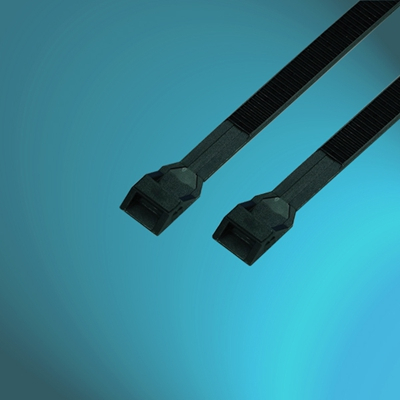

CT-PA11/12-180/8.6
ES
3926909090
Availability: | |
---|---|
Quantity: | |
SPECIFICATIONS | |||||
MATERIAL: | NYLON PA 11/12 | ||||
FEATURE: | NYLON 11/12 PROVIDE STRONG RESISTANCE TO CHEMICAL, SALT SPRAY AND ABRASION. IT HAS EXCELLENT FLEXIBILITY. GOOD FOR OUTDOOR APPLICATION. | ||||
COLOUR: | BLACK( STANDARD) | ||||
STANDARD: | UL (File No.E223165) | ||||
NOTE: | BLACK=BK | ||||
EASE CODE . | LENGTH | WIDTH | THICKNESS | MAX. BUNDLE DIAMETER | MINIMUM TENSILE STRENGTH |
mm (inch) | mm (inch) | mm (inch) | mm (inch) | Kg(lbs) | |
CT-PA11/12-180/8.6 | 180(7.09) | 8.6(0.339) | 2.0(0.079) | 40(1.57) | 35(77) |
CT-PA11/12-260/8.6 | 260(10.24) | 8.6(0.339) | 2.0(0.079) | 53(2.09) | 40(88) |
CT-PA11/12-355/8.6 | 355(13.98) | 8.6(0.339) | 2.0(0.079) | 83(3.27) | 40(88) |
SPECIFICATIONS | |||||
MATERIAL: | NYLON PA 11/12 | ||||
FEATURE: | NYLON 11/12 PROVIDE STRONG RESISTANCE TO CHEMICAL, SALT SPRAY AND ABRASION. IT HAS EXCELLENT FLEXIBILITY. GOOD FOR OUTDOOR APPLICATION. | ||||
COLOUR: | BLACK( STANDARD) | ||||
STANDARD: | UL (File No.E223165) | ||||
NOTE: | BLACK=BK | ||||
EASE CODE . | LENGTH | WIDTH | THICKNESS | MAX. BUNDLE DIAMETER | MINIMUM TENSILE STRENGTH |
mm (inch) | mm (inch) | mm (inch) | mm (inch) | Kg(lbs) | |
CT-PA11/12-180/8.6 | 180(7.09) | 8.6(0.339) | 2.0(0.079) | 40(1.57) | 35(77) |
CT-PA11/12-260/8.6 | 260(10.24) | 8.6(0.339) | 2.0(0.079) | 53(2.09) | 40(88) |
CT-PA11/12-355/8.6 | 355(13.98) | 8.6(0.339) | 2.0(0.079) | 83(3.27) | 40(88) |
