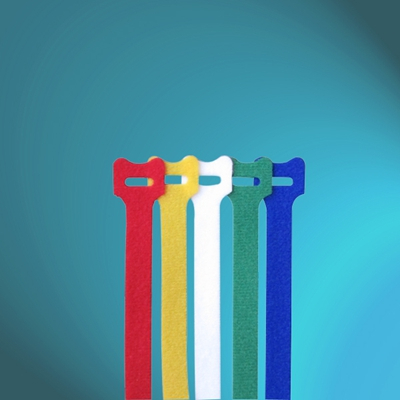

CT-VC-125/12
ES
3926909090
| Quantity: | |
|---|---|
SPECIFICATIONS | |||
MATERIAL: | FEMALE SIDE-PP, MALE SIDE-NYLON | ||
FEATURE: | LOW PROFILE, NO NEED FOR TOOLS, THIS TIE FEATURES QUICK RELEASE, ADJUSTABLE AND REUSABLE. ALSO, IT IS CORROSION FREE AND RESISTANT TO AGING. | ||
COLOUR: | ,RED, YELLOW, BLUE, WHITE GREEN &BLACK( STANDARD) | ||
STANDARD: | UL (File No.E223165) | ||
OPTION: | CUSTOMIZED ARE AVAILABLE UPON REQUEST | ||
EASE CODE . | LENGTH | WIDTH | MAX. BUNDLE DIAMETER |
mm (inch) | mm (inch) | mm (inch) | |
CT-VC-125/12 | 125(4.92) | 12(0.47) | 30(1.18) |
CT-VC-130/12 | 130(5.12) | 12(0.47) | 32(1.26) |
CT-VC-135/12 | 135(5.31) | 12(0.47) | 33(1.30) |
CT-VC-155/12 | 155(6.10) | 12(0.47) | 40(1.58) |
CT-VC-180/12 | 185(7.28) | 12(0.47) | 49(1.93) |
CT-VC-210/12 | 210(8.27) | 12(0.47) | 55(2.17) |
CT-VC-310/123 | 310(12.20) | 16(0.63) | 85(3.35) |
SPECIFICATIONS | |||
MATERIAL: | FEMALE SIDE-PP, MALE SIDE-NYLON | ||
FEATURE: | LOW PROFILE, NO NEED FOR TOOLS, THIS TIE FEATURES QUICK RELEASE, ADJUSTABLE AND REUSABLE. ALSO, IT IS CORROSION FREE AND RESISTANT TO AGING. | ||
COLOUR: | ,RED, YELLOW, BLUE, WHITE GREEN &BLACK( STANDARD) | ||
STANDARD: | UL (File No.E223165) | ||
OPTION: | CUSTOMIZED ARE AVAILABLE UPON REQUEST | ||
EASE CODE . | LENGTH | WIDTH | MAX. BUNDLE DIAMETER |
mm (inch) | mm (inch) | mm (inch) | |
CT-VC-125/12 | 125(4.92) | 12(0.47) | 30(1.18) |
CT-VC-130/12 | 130(5.12) | 12(0.47) | 32(1.26) |
CT-VC-135/12 | 135(5.31) | 12(0.47) | 33(1.30) |
CT-VC-155/12 | 155(6.10) | 12(0.47) | 40(1.58) |
CT-VC-180/12 | 185(7.28) | 12(0.47) | 49(1.93) |
CT-VC-210/12 | 210(8.27) | 12(0.47) | 55(2.17) |
CT-VC-310/123 | 310(12.20) | 16(0.63) | 85(3.35) |
