CF-PA-RB-2B-2
ES
3926909090
Availability: | |
---|---|
Quantity: | |
SPECIFICATIONS | ||||||
MATERIAL: | NYLON PA66,UL 94 V2 | |||||

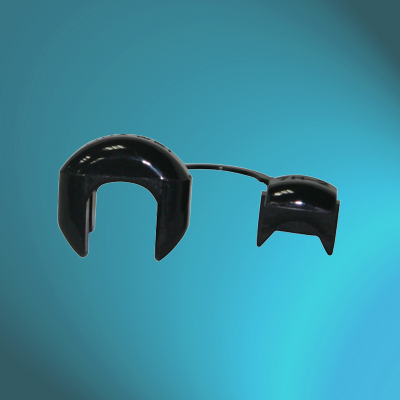

FEATURE: | THE STRAIN RELIEF BUSHINESS ARE THR EASY LOW-COST WAY TO INSULATE AND PROTECT YOUR CORDS. | |||||
COLOUR: | NATURAL OR BLACK (STANDARD) | |||||
OTHER COLOURS ARE AVAILABLE UPON REQUEST | ||||||
EASE CODE . | CROSS SECTION SHAPE | ACCOMMODATED WIRES | MOUNTING HOLES | MAX.CHASSIS THICKNESS | LENGTH | |
APPROX.WIRES SIZE (mm) | H (mm) | W (mm) | T (mm) | L(mm) | ||
CF-PA-RB-2B-2 | FLAT | 2.8 * 5.58 | 9.5 | 8.7 | 3.4 | 10.5 |
CF-PA-RB-3B-1 | FLAT | 3.05 * 5.58 | 10.3 | 12.3 | 1.6 | 10.3 |
CF-PA-RB-3B-2 | FLAT | 3.05 * 5.58 | 10.3 | 12.3 | 2.7 | 10.3 |
CF-PA-RB-3W-1 | FLAT | 3.81 * 10.16 | 9.5 | 16 | 2.4 | 11.9 |
CF-PA-RB-4B-2 | FLAT | 3.05 * 5.58 | 12.7 | 11.3 | 2.6 | 11 |
CF-PA-RB-4L-2 | FLAT | 3.05 * 7.62 | 12.7 | 11.5 | 2.6 | 10.5 |
CF-PA-RB-4W-2 | FLAT | 3.81 * 7.11 | 12.7 | 11.9 | 1.6 | 10.8 |
CF-PA-RB-5B-2 | ROUND | 6.35Φ-7.4Φ | 11.2 | 14.5 | 2.6 | 11.1 |
CF-PA-RB-5W-2 | ROUND | 6.35 Φ-7.4Φ | 12.5 | 11.5 | 1.6 | 11.1 |
CF-PA-RB-6B3-2R | ROUND | 8.25Φ-9.15Φ | 16.1 | 14 | 3.2 | 14.7 |
CF-PA-RB2R-6B3-2S | ROUND | 8.25Φ-9.15Φ | 16.1 | 14 | 3.2 | 14.7 |
CF-PA-RB-6W3-4R | ROUND | 8.25Φ-9.15Φ | 16.1 | 14 | 1.6 | 14.7 |
CF-PA-RB-6W3-4S | ROUND | 8.25Φ-9.15Φ | 16.1 | 14 | 1.6 | 14.7 |
CF-PA-RB-7H-2 | ROUND | 9.15Φ-11Φ | 16.8 | 15.7 | 1.76 | 19.1 |
CF-PA-RB-8H-2 | ROUND | 13.46Φ-15.25Φ | 21.1 | 19.5 | 3.5 | 20.7 |
CF-PA-RB9H-2 | ROUND | 11Φ-15Φ | 23.1 | 22.2 | 1.8 | 17.6 |
