CF-PA-TL-SO-A
ES
3926909090
| Quantity: | |
|---|---|
SPECIFICATIONS | |||||
MATERIAL: | NYLON PA66,UL94 V2 | ||||

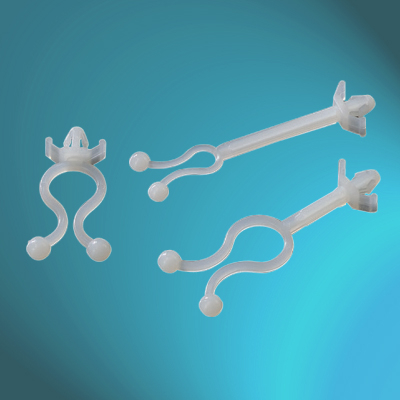

FEATURE: | TO SEPARATE WIRES FROM THE BOARD FOR AVOIDING HOT COMPONENTS' INTERFERENCE. | ||||
CABLE AND WIRE BUNDLES LOAD AND UNLOAD WITH A FINGERTIP TWIST. | |||||
COLOUR: | NATURAL (STANDARD) | ||||
EASE CODE . | L1 | L2 | Φ1 | D | MOUNTING HOLE DIA. |
mm (inch) | mm (inch) | mm (inch) | mm (inch) | Φ2mm (inch) | |
CF-PA-TL-SO-A | 28.4(1.118) | 21.0(0.827) | Φ12(0.472) | 7.5(0.295) | 0.48(0.189) |
CF-PA-TL-SO-B | 19.4(0.764) | 33.5(1.319) | Φ6(0.236) | 7.5(0.295) | 0.48(0.189) |
CF-PA-TL-SO-C | 26.3(1.035) | 4.7(0.185) | Φ11(0.433) | 7.5(0.295) | 0.48(0.189) |
CF-PA-TL-SO-BS | 19.0(0.748) | 6.0(0.236) | Φ6(0.236) | 7.5(0.295) | 0.48(0.189) |
SPECIFICATIONS | |||||
MATERIAL: | NYLON PA66,UL94 V2 | ||||
FEATURE: | TO SEPARATE WIRES FROM THE BOARD FOR AVOIDING HOT COMPONENTS' INTERFERENCE. | ||||
CABLE AND WIRE BUNDLES LOAD AND UNLOAD WITH A FINGERTIP TWIST. | |||||
COLOUR: | NATURAL (STANDARD) | ||||
EASE CODE . | L1 | L2 | Φ1 | D | MOUNTING HOLE DIA. |
mm (inch) | mm (inch) | mm (inch) | mm (inch) | Φ2mm (inch) | |
CF-PA-TL-SO-A | 28.4(1.118) | 21.0(0.827) | Φ12(0.472) | 7.5(0.295) | 0.48(0.189) |
CF-PA-TL-SO-B | 19.4(0.764) | 33.5(1.319) | Φ6(0.236) | 7.5(0.295) | 0.48(0.189) |
CF-PA-TL-SO-C | 26.3(1.035) | 4.7(0.185) | Φ11(0.433) | 7.5(0.295) | 0.48(0.189) |
CF-PA-TL-SO-BS | 19.0(0.748) | 6.0(0.236) | Φ6(0.236) | 7.5(0.295) | 0.48(0.189) |
