SPECIFICATIONS | |||
MATERIAL: | STAINLESS STEEL 316L | ||

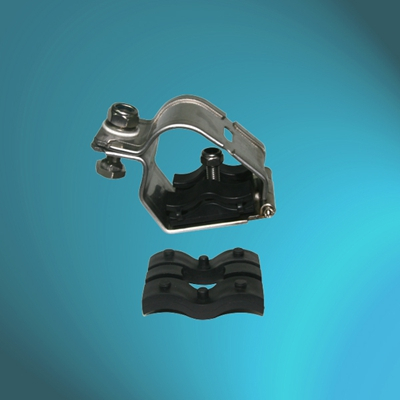

FEATURE: | THE UNIQUE DESIGN 316L STAINLESS STEEL CABLE CLEATS TO SUIT 13MM TO 111MM DIAMETER SINGLE CABLE AND 20MM TO 145MM DIAMETER TREFOIL CABLES. | ||
THE CLEAT IS FITTED WITH LOW SMOKE LINER PAD TO PROTECT AND CUSHION THE CABLES DURING SHORT CIRCUIT SITUATION. | |||
THE CLEATS PROVIDE EXCELLENT FIRE RESISTANCE UP TO +1000C(FOR SHORT PERIOD) AND ARE WIDELY USED FOR CABLE SUPPORT IN THE OIL, GAS, POWER, MARINE AND RAILWAY INDUSTRIES. | |||
STANDARD: | UL | ||
EASE CODE . | WIDTH | HEIGHT | SUITABLE CABLE DIAMETER |
mm | mm | ||
CLT-SS-66/74 | 66 | 74 | Φ13-23 |
CLT-SS-70/77 | 70 | 77 | Φ19-25 |
CLT-SS-78/81 | 78 | 81 | Φ23-29 |
CLT-SS-81/84 | 81 | 84 | Φ25-31 |
CLT-SS-83/86 | 83 | 86 | Φ27-33 |
CLT-SS-89/90 | 89 | 90 | Φ29-35 |
CLT-SS-95/94 | 95 | 94 | Φ32-38 |
CLT-SS-100/98 | 100 | 98 | Φ35-41.5 |
CLT-SS-104/101 | 104 | 101 | Φ38-44.5 |
CLT-SS-111/105 | 111 | 105 | Φ42-48 |
CLT-SS-117/109 | 117 | 109 | Φ45-51 |
CLT-SS-120/111 | 120 | 111 | Φ47-53 |
CLT-SS-124/114 | 124 | 114 | Φ49-55 |
CLT-SS-127/116 | 127 | 116 | Φ51-57 |
CLT-SS-133/119 | 133 | 119 | Φ53-59 |
CLT-SS-137/124 | 137 | 124 | Φ55-61 |
CLT-SS-140/126 | 140 | 126 | Φ57-63 |
CLT-SS-147/128 | 147 | 128 | Φ59-65 |
CLT-SS-150/132 | 150 | 132 | Φ61-67 |
CLT-SS-153/136 | 153 | 136 | Φ63-69 |
CLT-SS-156/140 | 156 | 140 | Φ65-71 |
CLT-SS-160/143 | 160 | 143 | Φ67-73 |
CLT-SS-163/147 | 163 | 147 | Φ69-75 |
CLT-SS-166/151 | 166 | 151 | Φ71-77 |
CLT-SS-169/154 | 169 | 154 | Φ73-79 |
CLT-SS-173/158 | 173 | 158 | Φ75-81 |
CLT-SS-176/164 | 176 | 164 | Φ79-85 |
CLT-SS-179/169 | 179 | 169 | Φ81-87 |
CLT-SS-182/173 | 182 | 173 | Φ83-89 |
CLT-SS-187/177 | 187 | 177 | Φ86-92 |
CLT-SS-192/181 | 192 | 181 | Φ88-96 |
CLT-SS-196/185 | 196 | 185 | Φ91-99 |
CLT-SS-201/190 | 201 | 190 | Φ96-103 |
CLT-SS-202-194 | 202 | 194 | Φ99-107 |
CLT-SS-204/199 | 204 | 199 | Φ103-111 |
