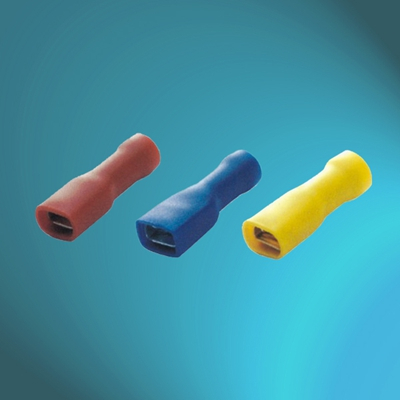

Vinyl Fully-insulated Female Push-on-Double Crimp

SPECIFICATION
MATERIAL: PVC INSULATION / BRASS TERMINAL / COPPER SLEEVE.
COATING: ELECTRO-TINED
WORKING TEMP.: 75℃
VOLTAGE: 300V
FEATURE: DOUBLE CRIMP - EXTRA COPPER SLEEVE WITHIN THE TERMINAL MAKES IT 'VIBRATION RESISTANT'.

  • TM-FFP-VD
  • ES
Quantity:

VINLY FULLY-INSULATED FEMALE PUSH-ON DISCONNECTORS - DOUBLE-CRIMP TYPE


SPECIFICATION

MATERIAL

PVC INSULATION / BRASS TERMINAL / COPPER SLEEVE.

COATING

ELECTRO-TINED

WORKING TEMP.

75

VOLTAGE

300V

DESCRIPTION

RED INSULATION: CONDUCTOR SIZE 0.5-1.5mm² / 22-16AWG.


BLUE INSULATION: CONDUCTOR SIZE 1.5-2.5mm² / 16-14AWG.


YELLOW INSULATION: CONDUCTOR SIZE 4.0-6.0mm² / 12-10AWG.


DOUBLE CRIMP - EXTRA COPPER SLEEVE WITHIN THE TERMINAL MAKES IT 'VIBRATION RESISTANT'.


HIGH GRADE PVC INSULATION MAKES CRIMPING EASY WHILST ENSURING COMPLETE INTEGRITY


OF TERMINATION.


A COMPLETE RANGE OF PRE-INSULATED TERMINALS THAT COMBINE HIGH QUALITY WITH


COMPETITIVE PRICING.


EASE CODE

TAB SIZE

DIMENSION mm(inch)

WIRE RANGE

Thickness x Width
mm(inch)

W

F

L

B

D

d1

T

mm²
(A.W.G)

TM-FFP-1-110(5)VD

0.5x2.8 (.020x.110)

3.2 (.126)

6.5 (.256)

19.0 (.748)

10.5 (.413)

3.8 (.150)

1.7 (.067)

0.3     (.012)

0.5-1.5 (22-16)

TM-FFP-1-110(8)VD

0.8x2.8 (.032x.110)

3.2 (.126)

6.5 (.256)

19.0 (.748)

TM-FFP-1-187(5)VD

0.5x4.75 (.020x.187)

5.0 (.197)

6.4 (.252)

20.5 (.807)

0.35 (.014)

TM-FFP-1-187(8)VD

0.8x4.75 (.032x.187)

5.0 (.197)

6.4 (.252)

20.5 (.807)

TM-FFP-1-205(5)VD

0.5x5.2 (.020x.205)

5.7 (.224)

5.8 (.228)

20.2 (.795)

TM-FFP-1-205(8)VD

0.8x5.2 (.032x.205)

5.7 (.224)

5.8 (.228)

20.2 (.795)

TM-FFP-1-250VD

0.8x6.35 (.032x.250)

6.6 (.260)

7.5 (.295)

21.8 (.858)

0.4(.016)

TM-FFP-2-110(5)VD

0.5x2.8 (.020x.110)

3.2 (.126)

6.5 (.256)

19.0 (.748)

10.5 (.413)

4.7 (.185)

2.3 (.091)

0.3(.012)

1.5-2.5 (16-14)

TM-FFP-2-110(8)VD

0.8x2.8 (.032x.110)

3.2 (.126)

6.5 (.256)

19.0 (.748)

TM-FFP-2-187(5)VD

0.5x4.75 (.020x.187)

5.0 (.197)

6.4 (.252)

20.2 (.795)

0.35 (0.14)

TM-FFP-2-187(8)VD

0.8x4.75 (.032x.187)

5.0 (.197)

6.4 (.252)

20.2 (.795)

TM-FFP-2-205(5)VD

0.5x5.2 (.020x.205)

5.7 (.224)

5.8 (.228)

20.2 (.795)

TM-FFP-2-205(8)VD

0.8x5.2 (.032x.205)

5.7 (.224)

5.8 (.228)

20.2 (.795)

TM-FFP-2-250VD

0.8x6.35 (.032x.250)

6.6 (.260)

7.5 (.295)

22.2 (.874)

0.4(.016)

TM-FFP-5-250VD

0.8x6.35 (.032x.250)

6.6 (.260)

7.5 (.295)

24.2 (.953)

12.5 (.492)

6.2 (.244)

3.4 (.134)

0.4(.016)

4-6

(12-10)

TM-FFP-5-375VD

1.2x9.4 (.047x.375)

10.0 (394)

12.0 (.472)

30.5 (1.201)

0.5(.020)
