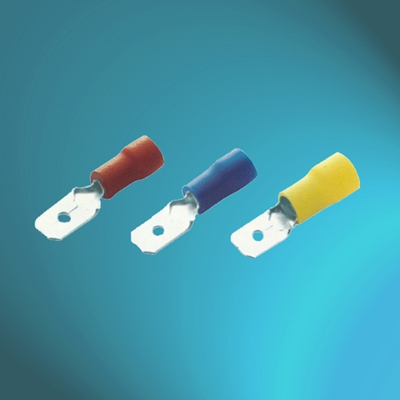

Vinyl Insulated Male Tap Terminals-Double Crimp

SPECIFICATION
MATERIAL: PVC INSULATION / BRASS TERMINAL / COPPER SLEEVE.
COATING: ELECTRO-TINED
WORKING TEMP.: 75℃
VOLTAGE: 300V
FEATURE: DOUBLE CRIMP - EXTRA COPPER SLEEVE WITHIN THE TERMINAL MAKES IT 'VIBRATION RESISTANT'.

  • TM-MT-VD
  • ES
Quantity:

VINLY INSULATED MALE TAB DISCONNECTORS - DOUBLE CRIMP TYPE


SPECIFICATION

MATERIAL

PVC INSULATION / BRASS TERMINAL / COPPER SLEEVE.

COATING

ELECTRO-TINED

WORKING TEMP.

75

VOLTAGE

300V

DESCRIPTION

RED INSULATION: CONDUCTOR SIZE 0.5-1.5mm² / 22-16AWG.


BLUE INSULATION: CONDUCTOR SIZE 1.5-2.5mm² / 16-14AWG.


YELLOW INSULATION: CONDUCTOR SIZE 4.0-6.0mm² / 12-10AWG.


DOUBLE CRIMP - EXTRA COPPER SLEEVE WITHIN THE TERMINAL MAKES IT 'VIBRATION RESISTANT'.


HIGH GRADE PVC INSULATION MAKES CRIMPING EASY WHILST ENSURING COMPLETE INTEGRITY


OF TERMINATION.


A COMPLETE RANGE OF PRE-INSULATED TERMINALS THAT COMBINE HIGH QUALITY WITH


COMPETITIVE PRICING.



EASE CODE

TAB SIZE

DIMENSION mm(inch)

WIRE RANGE

Thickness x Width
mm(inch)

W

F

L

B

D

d1

T

mm²
(A.W.G)

TM-MT-1-110(5)VD

0.5x2.8          (.020x.110)

2.8       (.110)

6.5    (.256)

19.2  (.756)

10.5  (.413)

3.8   (.150)

1.7  (.067)

0.5  (.020)

0.5-1.5
(22-16)

TM-MT-1-110(8)VD

0.8x2.8    (.032x.110)

2.8      (.110)

6.5    (.256)

19.2 (.756)

10.5 (.413)

3.8   (.150)

1.7  (.067)

0.4  (.016)

TM-MT-1-187(5)VD

0.5x4.75          (.020x.187)

4.8      (.189)

6.5    (.256)

19.8 (.780)

10.5  (.413)

3.8   (.150)

1.7  (.067)

0.5  (.020)

TM-MT-1-187(8)VD

0.8x4.75   (.032x.187)

4.8      (.189)

6.7   (.264)

19.8 (.780)

10.5  (.413)

3.8   (.150)

1.7  (.067)

0.4  (.016)

TM-MT-1-250VD

0.8x6.35      (.032x.250)

6.35    (.250)

7.7   (.303)

21.8  (.858)

10.5  (.413)

3.8   (.150)

1.7  (.067)

0.4  (.016)

TM-MT-2-187(5)VD

0.5x4.75   (.020x.187)

4.8   (.189)

6.5   (.256)

19.8  (.780)

10.5  (.413)

4.7  (.185)

2.3    (.091)

0.5  (.020)

1.5-2.5
(16-14)

TM-MT-2-187(8)VD

0.8x4.75     (.032x.187)

4.8   (.189)

6.7   (.264)

19.8  (.780)

10.5  (.413)

4.7  (.185)

2.3    (.091)

0.4  (.016)

TM-MT-2-250VD

0.8x6.35    (.032x.250)

6.35   (.250)

7.7   (.303)

21.8  (.858)

10.5  (.413)

4.7  (.185)

2.3    (.091)

0.4  (.016)

TM-MT-5-250VD

0.8x6.35    (.032x.250)

6.35   (.250)

7.7     (.303)

24.0  (.945)

13.0  (.512)

6.2  (.244)

3.4    (.134)

0.4  (.016)

4.0-6.0
(12-10)
