Vinyl Insulated Female Push-on-Double Crimp
You are here: Home » Product Category » Pre-Insulated Terminals » Male & Female Disconnectors » Vinyl Insulated Female Push-on-Double Crimp

Product Categories

Share to:

Vinyl Insulated Female Push-on-Double Crimp

SPECIFICATION
MATERIAL: PVC INSULATION / BRASS TERMINAL / COPPER SLEEVE.
COATING: ELECTRO-TINED
WORKING TEMP.: 75℃
VOLTAGE: 300V
FEATURE: DOUBLE CRIMP - EXTRA COPPER SLEEVE WITHIN THE TERMINAL MAKES IT 'VIBRATION RESISTANT'.

  • TM-FP-VD
  • ES
Quantity:

VINLY INSULATED FEMALE PUSH-ON DISCONNECTORS - DOUBLE-CRIMP TYPE


SPECIFICATION

MATERIAL

PVC INSULATION / BRASS TERMINAL / COPPER SLEEVE.

COATING

ELECTRO-TINED

WORKING TEMP.

75

VOLTAGE

300V

DESCRIPTION

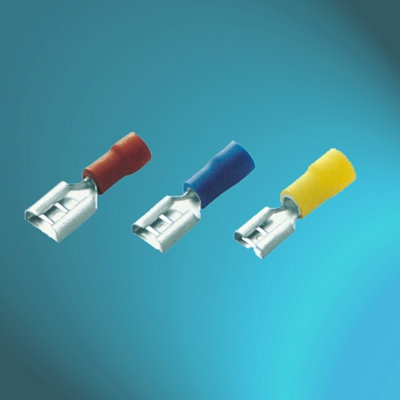

RED INSULATION: CONDUCTOR SIZE 0.5-1.5mm² / 22-16AWG.


BLUE INSULATION: CONDUCTOR SIZE 1.5-2.5mm² / 16-14AWG.


YELLOW INSULATION: CONDUCTOR SIZE 4.0-6.0mm² / 12-10AWG.


DOUBLE CRIMP - EXTRA COPPER SLEEVE WITHIN THE TERMINAL MAKES IT 'VIBRATION RESISTANT'.


HIGH GRADE PVC INSULATION MAKES CRIMPING EASY WHILST ENSURING COMPLETE INTEGRITY


OF TERMINATION.


A COMPLETE RANGE OF PRE-INSULATED TERMINALS THAT COMBINE HIGH QUALITY WITH


COMPETITIVE PRICING.


EASE CODE

TAB SIZE

DIMENSION mm(inch)

WIRE RANGE

Thickness x Width
mm(inch)

W

F

L

B

D

d1

T

mm²
(A.W.G)

TM-FP-1-110(5)VD

0.5x2.8(.020x.110)

3.2(.126)

6.5(.256)

19.0(.748)

10.5 (.413)

3.8 (.150)

1.7 (.067)

0.3    (.012)

0.5-1.5
(22-16)

TM-FP-1-110(8)VD

0.8x2.8(.032x.110)

3.2(.126)

6.5(.256)

19.0(.748)

TM-FP-1-187(5)VD

0.5x4.75(.020x.187)

5.0(.197)

6.4(.252)

19.4(.764)

0.35 (.0.14)

TM-FP-1-187(8)VD

0.8x4.75(.032x.187)

5.0(.197)

6.4(.252)

19.4(.764)

TM-FP-1-205(5)VD

0.5x5.2(.020x.205)

5.7(.224)

5.8(.228)

19.3(.760)

TM-FP-1-205(8)VD

0.8x5.2(.032x.205)

5.7(.224)

5.8(.228)

19.3(.760)

TM-FP-1-250VD

0.8x6.35(.032x.250)

6.6(.260)

7.5(.295)

20.8(.819)

0.4    (.016)

TM-FP-1-312VD

0.8x8.0(.032x.312)

8.2(.323)

10.0(.394)

24.5(.965)

TM-FP-2-110(5)VD

0.5x2.8(.020x.110)

3.2(.126)

6.5(.256)

19.0(.748)

4.7 (.185)

2.3 (.091)

0.3    (.012)

1.5-2.5
(16-14)

TM-FP-2-110(8)VD

0.8x2.8(.032x.110)

3.2(.126)

6.5(.256)

19.0(.748)

TM-FP-2-187(5)VD

0.5x4.75(.020x.187)

5.0(.197)

6.4(.252)

19.4(.764)

0.35  (.014)

TM-FP-2-187(8)VD

0.8x4.75(.032x.187)

5.0(.197)

6.4(.252)

19.4(.764)

TM-FP-2-205(5)VD

0.5x5.2(.020x.205)

5.7(.224)

5.8(.228)

19.3(.760)

TM-FP-2-205(8)VD

0.8x5.2(.032x.250)

5.7(.224)

5.8(.228)

19.3(.760)

TM-FP-2-250VD

0.8x6.35(.032x.250)

6.6(.260)

7.5(.295)

20.8(.819)

0.4    (.016)

TM-FP-2-312VD

0.8x8.0(.032x.312)

8.2(.323)

10.0(.394)

24.5(.965)

TM-FP-2-375VD

1.2x9.4(.047x.375)

10.0(.394)

12.0(.472)

26.1(1.028)

0.5(.020)

TM-FP-5-110(5)VD

0.5x2.8(.020x.110)

3.2(.126)

6.5(.256)

22.0(.866)

13.0 (.512)

6.2 (.244)

3.4 (.134)

0.35 (.014)

4.0-6.0
(12-10)

TM-FP-5-110(8)VD

0.8x2.8(.032x.110)

3.2(.126)

6.5(.256)

22.0(.866)

TM-FP-5-187(5)VD

0.5x4.75(.020x.187)

5.0(.197)

6.5(.256)

22.0(.866)

TM-FP-5-187(8)VD

0.8x4.75(.032x.187)

5.0(.197)

6.5(.256)

22.0(.866)

TM-FP-5-250VD

0.8x6.35(.032x.250)

6.6(.260)

7.5(.295)

23.3(.917)

TM-FP-5-312VD

0.8x8.0(.032x.312)

8.2(.323)

10.0(.394)

27.0(1.063)

0.4(.016)

TM-FP-5-375VD

1.2x9.4(.047x.375)

10.0(.394)

12.0(.472)

28.6(1.126)

0.5(.020)
