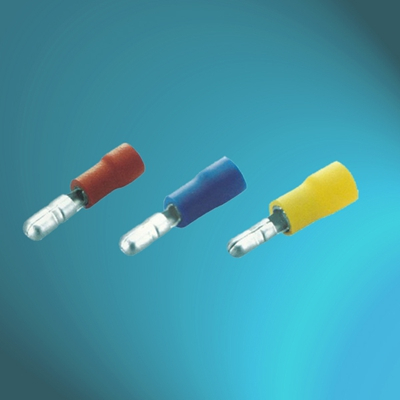

VINLY-INSULATED MALE BULLETS - DOUBLE-CRIMP TYPE
SPECIFICATION | |
MATERIAL | PVC INSULATION / BRASS TERMINAL / COPPER SLEEVE. |
COATING | ELECTRO-TINED |
WORKING TEMP. | 75℃ |
VOLTAGE | 300V |
DESCRIPTION | RED INSULATION: CONDUCTOR SIZE 0.5-1.5mm² / 22-16AWG. |
BLUE INSULATION: CONDUCTOR SIZE 1.5-2.5mm² / 16-14AWG. | |
YELLOW INSULATION: CONDUCTOR SIZE 4.0-6.0mm² / 12-10AWG. | |
DOUBLE CRIMP - EXTRA COPPER SLEEVE WITHIN THE TERMINAL MAKES IT 'VIBRATION RESISTANT'. | |
HIGH GRADE PVC INSULATION MAKES CRIMPING EASY WHILST ENSURING COMPLETE INTEGRITY | |
OF TERMINATION. | |
A COMPLETE RANGE OF PRE-INSULATED TERMINALS THAT COMBINE HIGH QUALITY WITH | |
COMPETITIVE PRICING. | |
EASE CODE | DIMENSION mm(inch) | WIRE RANGE | ||||||
W | F | L | B | D | d1 | T | mm² | |
TM-MB-1-156VD | 4.0(.157) | 8.5(.335) | 21.5(.846) | 10.5(.413) | 3.8(.150) | 1.7(.067) | 0.4(.016) | 0.5-1.5 |
TM-MB-2-156VD | 4.0(.157) | 8.5(.335) | 21.7(.854) | 10.5(.413) | 4.7(.185) | 2.3(.091) | 0.4(.016) | 1.5-2.5 |
TM-MB-2-195VD | 5.0(.197) | 8.5(.335) | 21.2(.835) | |||||
TM-MB-5-195VD | 5.0(.197) | 8.5(.335) | 24.0(.945) | 13.0(.512) | 6.2(.244) | 3.4(.134) | 0.4(.016) | 4.0-6.0 |
