TM-BU-V
ES
| Quantity: | |
|---|---|

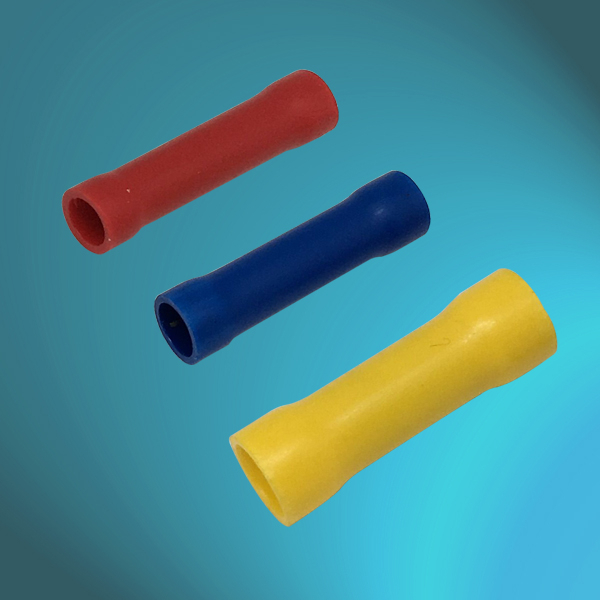

VINYL INSULATED BUTT CONNECTORS
SPECIFICATION | |
MATERIAL: | PVC INSULATION / COPPER TUBULAR |
COATING: | ELECTRO-TINED |
WORKING TEMP.: | 75℃ |
VOLTAGE: | 600V |
DESCRIPTION: | RED INSULATION: CONDUCTOR SIZE 0.5-1.5mm² / 22-16AWG. |
BULE INSULATION: CONDUCTOR SIZE 1.5-2.5mm² / 16-14AWG. | |
YELLOW INSULATION: CONDUCTOR SIZE 4.0-6.0mm² / 12-10AWG. | |
HIGH GRADE PVC INSULATION MAKES CRIMPING EASY WHILST ENSURING COMPLETE INTEGRITY OF TERMINATION. | |
A COMPLETE RANGE OF PRE-INSULATED TERMINALS THAT COMBINE HIGH QUALITY WITH COMPETITIVE PRICING. | |
STANDARD: | UL LISTED FILE NO. E366008 |
EASE CODE | DIMENSION mm(inch) | WIRE RANGE | ||||
L | F | D | d1 | T | mm² | |
TM-BU-1.25V | 23.0(.902) | 15.0(.588) | 4.0(.157) | 2.0(.078) | 0.6(.024) | 0.5-1.5 (22-16) |
TM-BU-2V | 23.2(.909) | 15.0(.588) | 4.5(.177) | 2.4(.094) | 0.6(.024) | 1.5-2.5 (16-14) |
TM-BU-5.5V | 25.5(1.00) | 15.0(.588) | 6.3(.247) | 3.6(.142) | 0.7(.027) | 4.0-6.0 (12-10) |
TM-BU-8V | 35.8(1.40) | 19.2(.753) | 8.5(.333) | 5.1(.200) | 0.95(.037) | 6.0-10.0 (8) |
VINYL INSULATED BUTT CONNECTORS
SPECIFICATION | |
MATERIAL: | PVC INSULATION / COPPER TUBULAR |
COATING: | ELECTRO-TINED |
WORKING TEMP.: | 75℃ |
VOLTAGE: | 600V |
DESCRIPTION: | RED INSULATION: CONDUCTOR SIZE 0.5-1.5mm² / 22-16AWG. |
BULE INSULATION: CONDUCTOR SIZE 1.5-2.5mm² / 16-14AWG. | |
YELLOW INSULATION: CONDUCTOR SIZE 4.0-6.0mm² / 12-10AWG. | |
HIGH GRADE PVC INSULATION MAKES CRIMPING EASY WHILST ENSURING COMPLETE INTEGRITY OF TERMINATION. | |
A COMPLETE RANGE OF PRE-INSULATED TERMINALS THAT COMBINE HIGH QUALITY WITH COMPETITIVE PRICING. | |
STANDARD: | UL LISTED FILE NO. E366008 |
EASE CODE | DIMENSION mm(inch) | WIRE RANGE | ||||
L | F | D | d1 | T | mm² | |
TM-BU-1.25V | 23.0(.902) | 15.0(.588) | 4.0(.157) | 2.0(.078) | 0.6(.024) | 0.5-1.5 (22-16) |
TM-BU-2V | 23.2(.909) | 15.0(.588) | 4.5(.177) | 2.4(.094) | 0.6(.024) | 1.5-2.5 (16-14) |
TM-BU-5.5V | 25.5(1.00) | 15.0(.588) | 6.3(.247) | 3.6(.142) | 0.7(.027) | 4.0-6.0 (12-10) |
TM-BU-8V | 35.8(1.40) | 19.2(.753) | 8.5(.333) | 5.1(.200) | 0.95(.037) | 6.0-10.0 (8) |
