Vinyl-insulated Locking Spade Terminal-Single Crimping
You are here: Home » Product Category » Pre-Insulated Terminals » Locking Spade Terminals » Vinyl-insulated Locking Spade Terminal-Single Crimping

Product Categories

Share to:

Vinyl-insulated Locking Spade Terminal-Single Crimping

SPECIFICATIONS
MATERIAL: PVC INSULATION / COPPER TERMINAL
COATING: ELECTRO-TINED
WORKING TEMP.: 75℃
VOLTAGE: 600V

  • TM-LSD-V
  • ES
Quantity:

VINLY-INSULATED LOCKING SPADE - SINGLE-CRIMP TYPE


SPECIFICATION

MATERIAL

PVC INSULATION / COPPER TERMINAL

COATING

ELECTRO-TINED

WORKING TEMP.

75

VOLTAGE

600V

DESCRIPTION

RED INSULATION: CONDUCTOR SIZE 0.5-1.5mm² / 22-16AWG.


BULE INSULATION: CONDUCTOR SIZE 1.5-2.5mm² / 16-14AWG.


YELLOW INSULATION: CONDUCTOR SIZE 4.0-6.0mm² / 12-10AWG.


HIGH GRADE PVC INSULATION MAKES CRIMPING EASY WHILST ENSURING COMPLETE INTEGRITY OF TERMINATION.


A COMPLETE RANGE OF PRE-INSULATED TERMINALS THAT COMBINE HIGH QUALITY WITH COMPETITIVE PRICING.


EASE CODE

d2

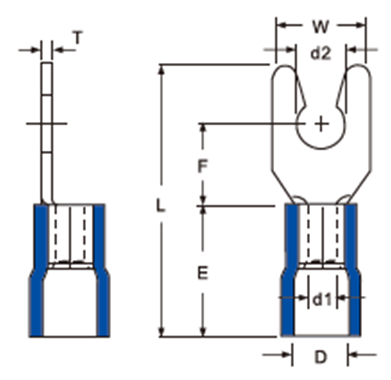

DIMENSION mm(inch)

WIRE RANGE

mm (inch)

USA

W

F

L

E

D

d1

T

mm²
(A.W.G)

TM-LSD-1-3.7V

3.7 (.146)

#6

6.4 (.252)

6.5 (.256)

21.0 (.827)

10.0 (.394)

4.0 (.134)

1.7 (.067)

0.75 (.030)

0.5-1.5
(22-16)

TM-LSDS-1-4V

4.3 (.169)

#8

7.2 (.283)

TM-LSDL-1-4V

4.3 (.169)

#8

8.1 (.319)

TM-LSDS-1-5V

5.3 (.209)

#10

8.1 (.319)

TM-LSDL-1-5V

5.3 (.209)

#10

9.5 (.374)

TM-LSD-2-3.7V

3.7 (.146)

#6

6.0 (.236)

6.5 (.256)

21.0 (.827)

10.0 (.394)

4.5 (.161)

2.3 (.091)

0.8 (.031)

1.5-2.5
(16-14)

TM-LSDS-2-4V

4.3 (.169)

#8

7.2 (.283)

TM-LSDL-2-4V

4.3 (.169)

#8

8.1 (.319)

TM-LSDS-2-5V

5.3 (.209)

#10

8.1 (.319)

TM-LSDL-2-5V

5.3 (.209)

#10

9.3 (.366)

TM-LSD-5-3.7V

3.7 (.146)

#6

8.3 (.327)

7.0 (.276)

25.2 (.992)

13.0 (.512)

6.4 (.252)

3.4 (.134)

1.0 (.039)

4.0-6.0
(12-10)

TM-LSD-5-4V

4.3 (.169)

#8

8.3 (.327)

TM-LSD-5-5V

5.3 (.209)

#10

9.0 (.354)

TM-LSD-5-6V

6.4 (.252)

1/4''

12.0 (.472)

12.0 (.472)

31.5 (1.240)
