Vinyl-insulated Lipped Blade Terminals-Single Crimping

SPECIFICATIONS
MATERIAL: PVC INSULATION / COPPER TERMINAL
COATING: ELECTRO-TINED
WORKING TEMP.: 75℃
VOLTAGE: 600V
STANDARD: UL LISTED FILE NO. E366008

  • TM-LBD-V
  • ES
Quantity:

VINLY-INSULATED LIPPED BLADE - SINGLE-CRIMP TYPE


SPECIFICATION

MATERIAL

PVC INSULATION / COPPER TERMINAL

COATING

ELECTRO-TINED

WORKING TEMP.

75

VOLTAGE

600V

DESCRIPTION

RED INSULATION: CONDUCTOR SIZE 0.5-1.5mm² / 22-16AWG.


BULE INSULATION: CONDUCTOR SIZE 1.5-2.5mm² / 16-14AWG.


YELLOW INSULATION: CONDUCTOR SIZE 4.0-6.0mm² / 12-10AWG.


HIGH GRADE PVC INSULATION MAKES CRIMPING EASY WHILST ENSURING COMPLETE INTEGRITY OF TERMINATION.


A COMPLETE RANGE OF PRE-INSULATED TERMINALS THAT COMBINE HIGH QUALITY WITH COMPETITIVE PRICING.

STANDARD

UL LISTED FILE NO. E366008


EASE CODE

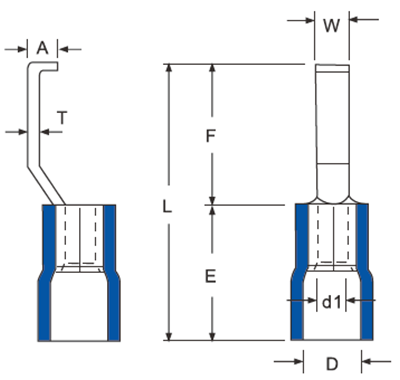

DIMENSION mm(inch)

WIRE RANGE

W

F

E

L

D

d1

A

T

mm²
(A.W.G)

TM-LBD-1-3V

3.0 (.118)

16.8 (.661)

10.0   (.394)

27.2 (1.071)

4.0   (.157)

1.7  (.067)

2.1   (.083)

0.75 (.029)

0.5-1.5
(22-16)

TM-LBD-1-4.6V

4.6 (.181)

TM-LBD-2-3V

3.0 (.118)

16.8 (.661)

10.0   (.394)

27.2 (1.071)

4.5 (.177)

2.3    (.091)

2.1   (.083)

0.80 (.031)

1.5-2.5
(16-14)

TM-LBD-2-4.6V

4.6 (.181)

TM-LBD-5-3V

3.0 (.118)

17.2 (.677)

13.0   (.512)

30.2 (1.189)

6.4  (.252)

3.4  (.134)

2.75   (.108)

1.0   (.039)

4.0-6.0
(12-10)

TM-LBD-5-4.6V

4.6 (.181)
