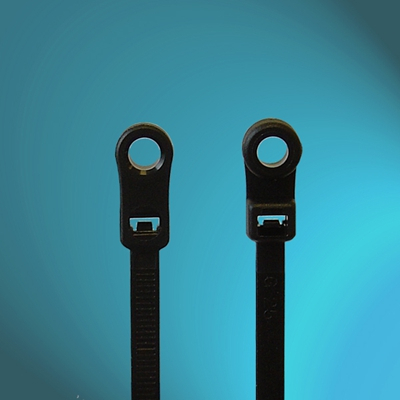

CT-PA-MH-110/2.5
ES
3926909090
Availability: | |
---|---|
Quantity: | |
SPECIFICATIONS | |||||
MATERIAL: | NYLON PA 66 | ||||
STANDARD: | UL (FILE NO. E223165) | ||||
COLOUR: | NATURAL OR BLACK(STANDARD | ||||
OPTION: | OTHER COLOURS ARE AVAILABLE UPON REQUEST | ||||
EASE CODE | LENGTH | WIDTH | Max. BUNDLE DIAMETER | Min. TENSILE STRENGTH | SCREW |
100pcs/bag | mm (inch) | mm (inch) | mm (inch) | kg (Ibs) | |
CT-PA-MH-110/2.5 | 110 (4.33) | 2.5 (0.10) | 22 (0.87) | 8.1 (18) | M3 |
CT-PA-MH-150/3.6 | 150 (5.91) | 3.6 (0.14) | 32 (1.26) | 18.2 (40) | M4 |
CT-PA-MH-200/4.8 | 200 (7.87) | 4.8 (0.19) | 50 (1.97) | 22.2 (50) | M5 |
CT-PA-MH-300/4.8 | 319 (12.56) | 4.8 (0.19) | 76 (2.99) | 22.2 (50) | M5 |
CT-PA-MH-370/4.8 | 389(15.31) | 4.8 (0.19) | 105 (4.13) | 22.2 (50) | M5 |
CT-PA-MH-200/7.6 | 215 (8.46) | 7.6 (0.30) | 50 (1.97) | 54.4 (120) | M5.5 |
CT-PA-MH-300/7.6 | 305 (12.01) | 7.6 (0.30) | 76 (2.99) | 54.4 (120) | M5.5 |
CT-PA-MH-380/7.6 | 375 (14.76) | 7.6 (0.30) | 98 (3.86) | 54.4 (120) | M6 |
