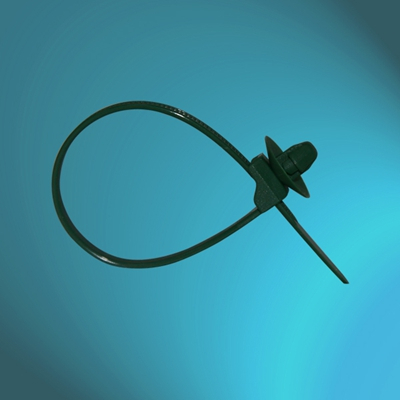

CT-PA-PM-DS-110/4.8
ES
3926909090
| Quantity: | |
|---|---|
SPECIFICATIONS | ||||||
MATERIAL: | NYLON PA 66, UL94 V2 | |||||
FEATURE: | PUSH MOUNT WITH DISC ENHANCES THE STABLE OF FIXING AND AVOID DUST AND WATER INVASION. | |||||
COLOUR: | BLACK( STANDARD) | |||||
STANDARD: | UL (File No.E223165) | |||||
EASE CODE . | LENGTH | WIDTH | MAX. BUNDLE DIAMETER | MINIMUM TENSILE STRENGTH | HOLE DIA. | PANEL THICKNESS |
mm (inch) | mm (inch) | mm (inch) | Kg(lbs) | mm (inch) | mm (inch) | |
CT-PA-PM-DS-110/4.8 | 110(4.33) | 4.8(0.19) | 22(0.87) | 13.6（30） | Φ5.7(0.224) | 1~3(0.039~0.118) |
CT-PA-PM-DS-154/6.6 | 154(6.06) | 6.6(0.26) | 35(1.38） | 18.2(40） | Φ5.8(0.228) | 1~3(0.039~0.118) |
CT-PA-PM-DS-165/6.4 | 165(6.50) | 6.4(0.25) | 35(1.38） | 40.0（88） | Φ6.5(0.256) | 1~3(0.039~0.118) |
SPECIFICATIONS | ||||||
MATERIAL: | NYLON PA 66, UL94 V2 | |||||
FEATURE: | PUSH MOUNT WITH DISC ENHANCES THE STABLE OF FIXING AND AVOID DUST AND WATER INVASION. | |||||
COLOUR: | BLACK( STANDARD) | |||||
STANDARD: | UL (File No.E223165) | |||||
EASE CODE . | LENGTH | WIDTH | MAX. BUNDLE DIAMETER | MINIMUM TENSILE STRENGTH | HOLE DIA. | PANEL THICKNESS |
mm (inch) | mm (inch) | mm (inch) | Kg(lbs) | mm (inch) | mm (inch) | |
CT-PA-PM-DS-110/4.8 | 110(4.33) | 4.8(0.19) | 22(0.87) | 13.6（30） | Φ5.7(0.224) | 1~3(0.039~0.118) |
CT-PA-PM-DS-154/6.6 | 154(6.06) | 6.6(0.26) | 35(1.38） | 18.2(40） | Φ5.8(0.228) | 1~3(0.039~0.118) |
CT-PA-PM-DS-165/6.4 | 165(6.50) | 6.4(0.25) | 35(1.38） | 40.0（88） | Φ6.5(0.256) | 1~3(0.039~0.118) |
