ASG-S
ES
3917400000
| Quantity: | |
|---|---|

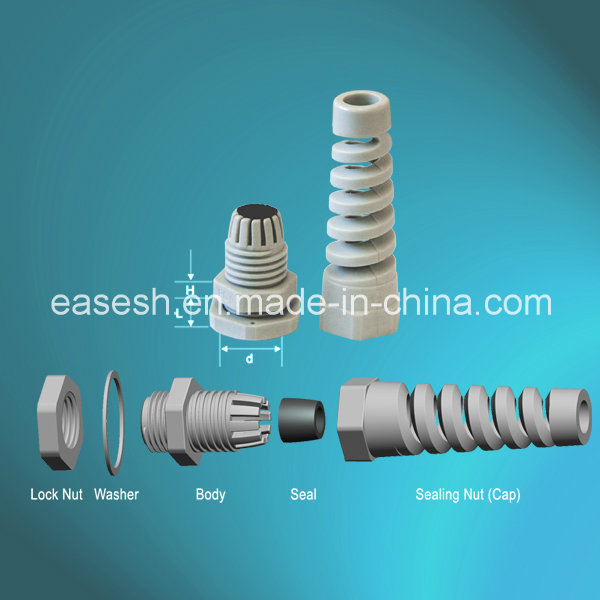

Nylon Spiral Cable Gland
Specification:
Material: Nylon PA6 or PA66
Sealing: Neoprene
Standard: RoHS & IP68
Standard Color: black, grey, light grey, red, blue(Other color is upon request.)
Working Temperature: -40°C ~ +100°C, short time +120°C
Feature: Different thread length for different junction box
Technical data:
| STANDARD THREAD | ||||||
| EASE CODE | CABLE RANGE | d | SPANNER SIZE | H | L | |
| METRIC TYPE | mm | (MM) | body | lock nut | mm | mm |
| ASG-S-M12-T | 3~6.5 | 12 | 15 | 19 | 5 | 8 |
| ASG-S-M12-t | 2~5 | 12 | 15 | 19 | 5 | 8 |
| ASG-S-M16-T | 4~8 | 16 | 19 | 22 | 5 | 8 |
| ASG-S-M16-t | 2~6 | 16 | 19 | 22 | 5 | 8 |
| ASG-S-M20-T | 6~12 | 20 | 24 | 27 | 6 | 9 |
| ASG-S-M20-t | 5~9 | 20 | 2 | 27 | 6 | 9 |
| ASG-S-M25-T | 13~18 | 25 | 27 | 30 | 6 | 11 |
| ASG-S-M25-t | 9~16 | 25 | 27 | 30 | 6 | 11 |
| LONG THREAD | ||||||
| EASE CODE | CABLE RANGE | d | SPANNER SIZE | H | L | |
| METRIC TYPE | mm | (MM) | body | lock nut | mm | mm |
| ASG-L-M12-T | 3~6.5 | 12 | 15 | 19 | 5 | 15 |
| ASG-L-M12-t | 2~5 | 12 | 15 | 19 | 5 | 15 |
| ASG-L-M16-T | 4~8 | 16 | 19 | 22 | 5 | 15 |
| ASG-L-M16-t | 2~6 | 16 | 19 | 22 | 5 | 15 |
| ASG-L-M20-T | 6~12 | 20 | 24 | 27 | 6 | 15 |
| ASG-L-M20-t | 5~9 | 20 | 24 | 27 | 6 | 15 |
We have a whole range of cable glands with PG, Metric, and NPT thread, in various colours such as light grey dark grey, black, white, red and blue etc. We can provide standard, neutral packaging, or special customised packaging to meet with our customers very different requirements.
We are also specialised in making toolings according to customers' own drawings and samples with fast turnaround time and cost-effective solutions.
Nylon Spiral Cable Gland
Specification:
Material: Nylon PA6 or PA66
Sealing: Neoprene
Standard: RoHS & IP68
Standard Color: black, grey, light grey, red, blue(Other color is upon request.)
Working Temperature: -40°C ~ +100°C, short time +120°C
Feature: Different thread length for different junction box
Technical data:
| STANDARD THREAD | ||||||
| EASE CODE | CABLE RANGE | d | SPANNER SIZE | H | L | |
| METRIC TYPE | mm | (MM) | body | lock nut | mm | mm |
| ASG-S-M12-T | 3~6.5 | 12 | 15 | 19 | 5 | 8 |
| ASG-S-M12-t | 2~5 | 12 | 15 | 19 | 5 | 8 |
| ASG-S-M16-T | 4~8 | 16 | 19 | 22 | 5 | 8 |
| ASG-S-M16-t | 2~6 | 16 | 19 | 22 | 5 | 8 |
| ASG-S-M20-T | 6~12 | 20 | 24 | 27 | 6 | 9 |
| ASG-S-M20-t | 5~9 | 20 | 2 | 27 | 6 | 9 |
| ASG-S-M25-T | 13~18 | 25 | 27 | 30 | 6 | 11 |
| ASG-S-M25-t | 9~16 | 25 | 27 | 30 | 6 | 11 |
| LONG THREAD | ||||||
| EASE CODE | CABLE RANGE | d | SPANNER SIZE | H | L | |
| METRIC TYPE | mm | (MM) | body | lock nut | mm | mm |
| ASG-L-M12-T | 3~6.5 | 12 | 15 | 19 | 5 | 15 |
| ASG-L-M12-t | 2~5 | 12 | 15 | 19 | 5 | 15 |
| ASG-L-M16-T | 4~8 | 16 | 19 | 22 | 5 | 15 |
| ASG-L-M16-t | 2~6 | 16 | 19 | 22 | 5 | 15 |
| ASG-L-M20-T | 6~12 | 20 | 24 | 27 | 6 | 15 |
| ASG-L-M20-t | 5~9 | 20 | 24 | 27 | 6 | 15 |
We have a whole range of cable glands with PG, Metric, and NPT thread, in various colours such as light grey dark grey, black, white, red and blue etc. We can provide standard, neutral packaging, or special customised packaging to meet with our customers very different requirements.
We are also specialised in making toolings according to customers' own drawings and samples with fast turnaround time and cost-effective solutions.
