IT-RU-MAD
ES
3919109900
| Quantity: | |
|---|---|

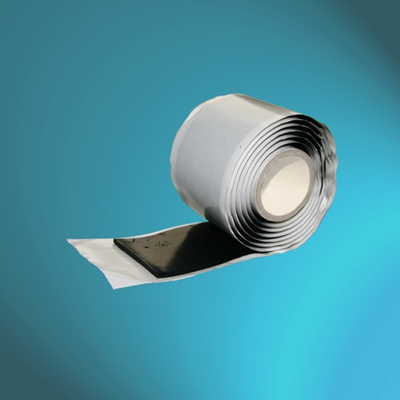

Double Sided Rubber Insulation Tapes
SPECIFICATIONS | |||
MATERIAL: | SELF-BONDING ETHYLENE PROPYLENE RUBBER | ||
STANDARD: | UL | ||
COLOUR: | BLACK ON WHITE MASTIC | ||
INSULATION: | 1000V | ||
FEATURE: | THE SELF-BONDING DOUBLE SIDED MASTIC THICK TAPE HAS PROPERTY OF SUPERIOR ADHESION TO METAL AND EXCELLENT THERMAL STABILITY. IT IS UV, MOISTURE, COMPASSION, AND CHEMICAL RESISTANT. | ||
APPLICATION: | FOR PERMANENTLY SEAL AND AND INSULATE CABLE ENDS, DUCT AND SUBSURFACE OF OVERHEAD LOW VOLTAGE CONNECTIONS. | ||
PROPERTY | VALUE | UNIT | TEST METHOD |
TOTAL THICKNESS | 3.18 | mm | ASTM-D-4325 |
EMERGENCY OVERRATING | 90 | °C | ASTM-D-4325 |
CONTINUOUS OPERATING TEMP. | 130 | °C | ASTM-D-4325 |
WATER ABSORPTION | 0.1 | % | ASTM-D-570 |
OZONE RESISTANCE | PASS | - | ASTM-D-4325 |
COPPER CORROSION | PASS | - | ASTM-D-69 |
DIELECTRIC STRENGTH | 19 | K v / mm | ASTM-D-4325 |
DIELECTRIC CONSTANT | 3.2 | - | ASTM-D-4325 |
VOLUME RESISTIVELY | ＞10^15 | Ohm-cm | ASTM-D-4325 |
EASE CODE | THICKNESS | WIDTH | LENGTH | CORE |
mm | mm | m | mm | |
IT-RU-MAD-3.18/25.4/3 | 3.18 | 25.4 | 3 | 38 |
IT-RU-MAD-3.18/51.0/3 | 3.18 | 51 | 3 | 38 |
IT-RU-MAD-3.18/95.0/3 | 3.18 | 95 | 3 | 38 |
IT-RU-MAD-3.18/95.0/95 | 3.18 | 95 | 95 | 38 |
IT-RU-MAD-3.18/95.0/165 | 3.18 | 95 | 165 | 38 |
IT-RU-MAD-3.18/63.5/95.3 | 3.18 | 63.5 | 95.3 | 38 |
