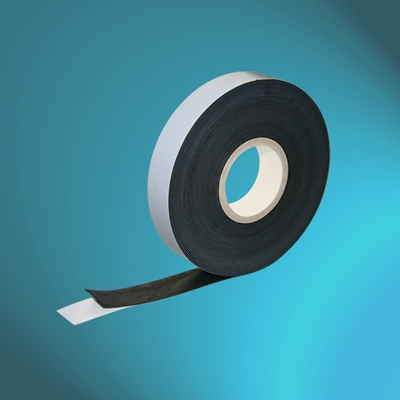

Electrostatic Shielding Rubber Tapes
SPECIFICATIONS | |||
MATERIAL: | ETHYLENE PROPYLENE RUBBER (EPR) | ||
STANDARD: | UL | ||
COLOUR: | BLACK ON WHITE LINER | ||
CONDUIT: | GOOD CONDUCTIVITY | ||
FEATURE: | FOR ELECTROSTATIC SHIELDING ON HIGH VOLTAGE SPLICES AND TERMINATION. FILLING INDENTS IN COMPRESSED CONNECTORS AND REBUILDING STRAND SHIELDING ON HIGH VOLTAGE SPLICES. IT HAS SELF-AMALGAMATING, GOOD CONDUCTING, EASY TO APPLY AND UV RESISTANT PROPERTIES. | ||
APPLICATION: | IDEAL FOR APPLICATIONS ON POWER CABLES WHERE ACCOMMODATION OF EXPANSION AND CONTRACTION DUE TO LEAD CYCLING IS IMPORTANT, SUCH AS ON SHIELDING BUS AND OVERHEAD CONNECTIONS. | ||
PROPERTY | VALUE | UNIT | TEST METHOD |
TOTAL THICKNESS | 0.76 | mm | ASTM-D-4325 |
TENSILE STRENGTH | 250(1.72) | Psi(Mpa) | ASTM-D-4325 |
ELONGATION AT BREAK | 500 | % | ASTM-D-4325 |
CONTINUOUS OPERATING TEMP. | 90 | °C | ASTM-D-4325 |
EMERGENCY OVERLOAD TEMP. | 130 | °C | ASTM-D-4325 |
UV RESISTANCE | PASS | - | ASTM-D-4325 |
WATER ABSORPTION | 0.02 | % | ASTM-D-570 |
VOLUME RESISTIVITY | |||
DIELECTRIC STRENGTH | 870 | Ohm-cm | ASTM-D-4325 |
VOLUME RESISTIVITY | 10^4 | Ohm-cm | ASTM-D-432 |
EASE CODE | THICKNESS | WIDTH | LENGTH | CORE |
mm | mm | mm | mm | |
IT-RU-SH-0.76/19/4.6 | 0.76 | 19 | 4.6 | 38 |
