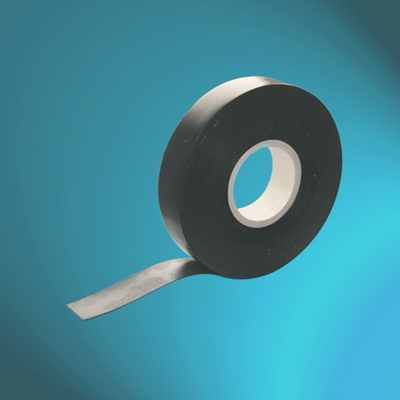

Medium Voltage Jacketing Rubber Insulation Tapes

MATERIAL:

BUTYLENE BASED RUBBER

STANDARD:

UL

COLOUR:

BLACK (STANDARD)

INSULATION:

UP TO 22KV

FEATURE:

SELF-AMALGAMATING( IT FUSES QUICKLY YIELDING A VOID-FREE, ELECTRICALLY STABILIZED JACKET) EXCELLENT UV, CORONA AND OZONE RESISTANCE SUPERIOR ELECTRICAL PROPERTIES OUTSTANDING MOISTURE, CORROSION, CHEMICAL   AND CABLE IMP REGNANT RESISTANCE.

APPLICATION:

FOR INSULATING AND JACKETING OF SPLICES ON POWER CABLES UP TO 22 KV. ALSO WIDELY USED FOR BUILDING STRESS CONES AND JACKING OF TERMINATIONS ON POWER CABLE UP TO 35 KV.

PROPERTY

VALUE

UNIT

TEST METHOD

TOTAL THICKNESS

0.5

mm

ASTM-D-4325

TENSILE STRENGTH

150(1.72)

psi(Mpa)

ASTM-D-4325

ELONGATION AT BREAK

700

%

ASTM-D-4325

TEMPERATURE RANGE

-40~+90

°C

ASTM-D-4325

WATER ABSORPTION

0.02

%

ASTM-D-570

OZONE RESISTANCE

PASS

-

ASTM-D-4325

UV RESISTANCE

PASS

-

ASTM-D-4325

DIELECTRIC STRENGTH

20

K v / mm

ASTM-D-4325

DIELECTRIC CONSTANT

2.5

-

ASTM-D-4325

DISSIPATION FACTOR

0.002

-

ASTM-D-4325

VOLUME RESISTIVITY

＞10^13

Ohm-cm

ASTM-D-4325

mm

 mm

m

mm

IT-RU-MVJ-0.5/19/10

0.5

19

10

38

IT-RU-MVJ-0.5/25/10

0.5

25

10

38

IT-RU-MVJ-0.5/38/10

0.5

38

10

38

IT-RU-MVJ-0.5/51/10

0.5

51

10

38
