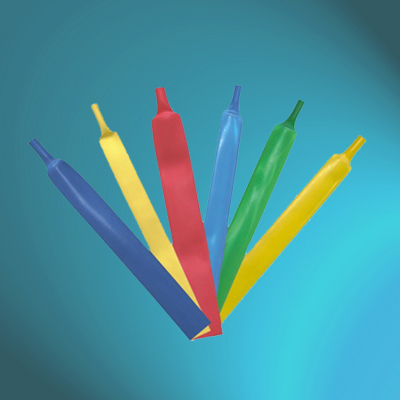

Heat-Shrink Single-Wall 2X Tubes
SPECIFICATIONS | ||||||
MATERIAL: | POLYOLEFIN (CROSSLINKED) | |||||
FEATURE: | FLAME RETARDANT | |||||
VOLTAGE: | 600 V | |||||
STANDARD: | UL 224 125°C & RoHS | |||||
WALL TYPE: | SINGLE | |||||
SHRINK TEMP: | 90°C | |||||
WORK TEMP: | -55°C~125°C | |||||
RATIO: | 2:1 | |||||
UL FILE: | E197895 | |||||
EASE CODE | AS SUPPLIED (mm) | AFTER RECOVERY (mm) | ||||
Inside Diameter | Wall Thickness | Inside Diameter | Wall Thickness | |||
(D) | (T) | (d) | (t) | |||
mm | inch | mm | mm | inch | mm | |
HS-SW-1.2/0.6 | ≥1.2 | 3/64 | 0.20 ± 0.05 | ≤0.6 | 3/128 | 0.40 ± 0.08 |
HS-SW-1.6/0.8 | ≥1.6 | 1/16 | 0.20 ± 0.05 | ≤0.8 | 1/32 | 0.40 ± 0.08 |
HS-SW-2.4/1.2 | ≥2.4 | 3/32 | 0.20 ± 0.05 | ≤1.0 | 3/64 | 0.42 ± 0.08 |
HS-SW-3.2/1.6 | ≥3.2 | 1/8 | 0.25 ± 0.08 | ≤1.5 | 1/16 | 0.48 ± 0.10 |
HS-SW-4.8/2.4 | ≥4.8 | 3/16 | 0.25 ± 0.08 | ≤2.0 | 3/32 | 0.54 ± 0.10 |
HS-SW-6.4/3.2 | ≥6.4 | 1/4 | 0.25 ± 0.08 | ≤3.0 | 1/8 | 0.50 ± 0.10 |
HS-SW-9.5/4.7 | ≥9.5 | 3/8 | 0.30 ± 0.10 | ≤4.5 | 3/16 | 0.72 ± 0.12 |
HS-SW-12.7/6.3 | ≥12.7 | 1/2 | 0.30 ± 0.10 | ≤6.0 | 1/4 | 0.72 ± 0.12 |
HS-SW-16/8 | ≥16.0 | 5/8 | 0.30 ± 0.10 | ≤8.0 | 5/16 | 0.70 ± 0.12 |
HS-SW-19.1/9.5 | ≥19.1 | 3/4 | 0.38 ± 0.12 | ≤10.0 | 3/8 | 0.80 ± 0.15 |
HS-SW-25.4/12.7 | ≥25.4 | 1 | 0.42 ± 0.13 | ≤12.5 | 1/2 | 0.90 ± 0.15 |
HS-SW-32/16 | ≥32.0 | 1-1/4 | 0.42 ± 0.13 | ≤15.0 | 5/8 | 0.97 ± 0.15 |
HS-SW-38.1/19 | ≥38.1 | 1-1/2 | 0.42 ± 0.13 | ≤21.0 | 3/4 | 1.10 ± 0.15 |
HS-SW-50.8/25.4 | ≥50.8 | 2 | 0.50 ± 0.15 | ≤27.0 | 1 | 1.10 ± 0.15 |
HS-SW-76.2/38.1 | ≥76.2 | 3 | 0.70 ± 0.30 | ≤38.1 | 1-1/2 | 1.25 ± 0.20 |
HS-SW-101.6/50.8 | ≥101.6 | 4 | 0.70 ± 0.30 | ≤50.8 | 2 | 1.25 ± 0.20 |
HS-SW-127/63.5 | ≥127.0 | 5 | 0.70 ± 0.30 | ≤63.5 | 2-1/2 | 1.40 |
HS-SW-152.4/76.2 | ≥152.4 | 6 | 0.70 ± 0.30 | ≤76.2 | 3 | 1.40 |
HS-SW-177.8/88.9 | ≥177.8 | 7 | 0.70 ± 0.30 | ≤88.9 | 3-1/2 | 1.40 |
HS-SW-203.2/101.6 | ≥203.2 | 8 | 0.70 ± 0.30 | ≤101.6 | 4 | 1.40 |
HS-SW-228.6/114.3 | ≥228.6 | 9 | 0.70 ± 0.30 | ≤114.3 | 4-1/2 | 1.40 |
Technical data:
DATA | PROPERTY | |
Tensile Strength | ≥10.4MPa | |
Tensile Strength After Aging | ≥7.3MPa | 158°C ± 1.0°C, 168 hrs |
Elongation | ≥200% | |
Elongation After Aging | ≥100% | 134°C 60 days |
Longitudinal Change | <±5% | |
Radial Shrinking Ratio | ≥50% | |
Flammability | VW-1 | |
Dielectric Strength | No Breakdown | At 1 Min, AC2500V |
Volume Resistivity | ≥10 * 1012 Ω.cm | |
Corrosion | No Corrosion | |
Copper Stability | ≥100% | |
Concentricity | 70% |
