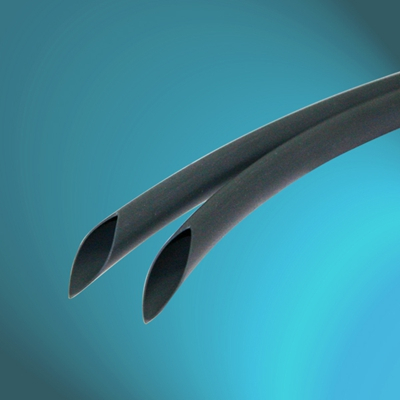

Low Shrink Temp. Heat Shrink Single-Wall 2X Tubing

MATERIAL:

POLYOLEFIN (CROSSLINKED)

FEATURE:

FLAME RETARDANT

VOLTAGE:

600 V

STANDARD:

UL 224 125°C & RoHS

WALL TYPE:

SINGLE

SHRINK TEMP:

90°C

WORK TEMP:

-55°C~125°C

RATIO:

2:1

UL FILE:

E197895

EASE CODE

AS SUPPLIED (mm)

AFTER RECOVERY (mm)

Inside

Wall

Inside

Wall

Diameter (D)

Thickness (T)

Diameter (D)

Thickness (T)

(D)

(T)

(d)

(t)

mm

inch

mm

mm

inch

mm

HS-SW-1.2/0.6-LT

≥1.2

3/64

0.20 ± 0.08

≤0.6

3/128

0.40 ± 0.08

HS-SW-1.6/0.8-LT

≥1.6

1/16

0.20 ± 0.08

≤0.8

1/32

0.40 ± 0.08

HS-SW-2.4/1.2LT

≥2.4

3/32

0.20 ± 0.09

≤1.0

3/64

0.42 ± 0.08

HS-SW-3.2/1.6LT

≥3.2

1/8

0.25 ± 0.09

≤1.5

1/16

0.48 ± 0.10

HS-SW-4.8/2.4LT

≥4.8

3/16

0.25 ± 0.09

≤2.0

3/32

0.54 ± 0.10

HS-SW-6.4/3.2LT

≥6.4

1/4

0.28 ± 0.10

≤3.0

1/8

0.50 ± 0.10

HS-SW-9.5/4.7LT

≥9.5

3/8

0.30 ± 0.12

≤4.5

3/16

0.72 ± 0.12

HS-SW-12.7/6.3LT

≥12.7

1/2

0.30 ± 0.12

≤6.0

1/4

0.72 ± 0.12

HS-SW-16/8LT

≥16.0

5/8

0.36 ± 0.12

≤8.0

5/16

0.70 ± 0.12

HS-SW-19.1/9.5LT

≥19.1

3/4

0.38 ± 0.15

≤10.0

3/8

0.80 ± 0.15

HS-SW-25.4/12.7LT

≥25.4

1

0.42 ± 0.15

≤12.5

1/2

0.90 ± 0.15

HS-SW-32/16LT

≥32.0

1-1/4

0.45 ± 0.15

≤15.0

5/8

0.97 ± 0.15

HS-SW-38.1/19LT

≥38.1

1-1/2

0.50 ± 0.15

≤21.0

3/4

1.10 ± 0.15

HS-SW-50.8/25.4LT

≥50.8

2

0.50 ± 0.15

≤27.0

1

1.10 ± 0.15

HS-SW-76.2/38.1LT

≥76.2

3

0.70 ± 0.30

≤38.1

1-1/2

1.25 ± 0.20

HS-SW-101.6/50.8LT

≥101.6

4

0.70 ± 0.30

≤50.8

2

1.25 ± 0.20

HS-SW-127/63.5LT

≥127.0

5

0.70 ± 0.30

≤63.5

2-1/2

1.4

HS-SW-152.4/76.2LT

≥152.4

6

0.70 ± 0.30

≤76.2

3

1.4

HS-SW-177.8/88.9LT

≥177.8

7

0.70 ± 0.30

≤88.9

3-1/2

1.4

HS-SW-203.2/101.6LT

≥203.2

8

0.70 ± 0.30

≤101.6

4

1.4

HS-SW-228.6/114.3LT

≥228.6

9

0.70 ± 0.30

≤114.3

4-1/2

1.4
