One-Side Entry Polycarbonate Terminal Blocks - OEM 5 Pole
You are here: Home » Product Category » Terminal Blocks » One-side Entry PC Terminal Strip » One-Side Entry Polycarbonate Terminal Blocks - OEM 5 Pole

Product Categories

Share to:

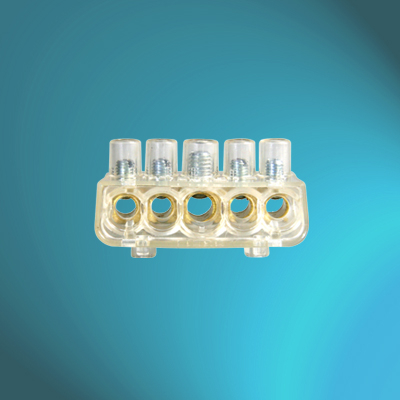

One-Side Entry Polycarbonate Terminal Blocks - OEM 5 Pole

OEM Type
Housing material: Polycarbonate (PC)
Inserts: Brass
Working temperature : - 35°C to 130°C
Screws: Galvanised Steel
Standard: IMQ & CE & IP20
Color: Transparent
Feature: one-side entry; easy to be separated by hands; flame retardant;

  • COE-F5
  • ES
  • 8538900000
Quantity:

One-Side Entry Terminal Blocks - OEM 5 Pole


SPECIFICATIONS

INSERTS:

BRASS

HOUSING:

POLYCARBONATE (PC)

TEMP.:

85℃ MAX 130℃

SCREWS:

GALVANISED STEEL

STANDARD:

IMQ & CE

COLOR:

CLEAR

FEATURE:

RIGID & EASY CUT
FLAME RETARDANT
ALL SCREWS ARE CAPTIVE & RAISED FOR EASY WIRING
IP20

EASE CODE

POLES

CROSS SECTION

CURRENT RANGE

RATED VOLTAGE

DIMENSIONS (mm)

W

Φ1

Φ2

D

d1

d2

H

h

COE-F5-6

5

6 mm2

41A

450V

22.5

4

5

40.5

6.5

7

27

22

COE-F5-16

5

16 mm2

76A

450V

25.25

6

7.5

53

9

10

30

25

Cross Section: rated for flexible cable and wire
Φ1 wire entry hole diameter
Φ2 fixing hole diameter
