Push Wire Connectors - 2 Poles
You are here: Home » Product Category » Terminal Blocks » Push-Wire Connector » Push Wire Connectors - 2 Poles

Product Categories

Share to:

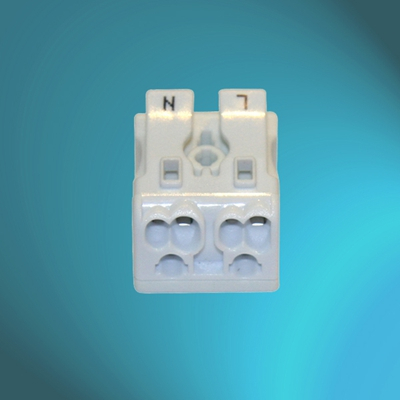

Push Wire Connectors - 2 Poles

Voltage (V): 450
Ampere (A): 10 (for operation)
Comply with IEC/EN60998-2-2
Pushwire "Quick-Connection"

  • ES
  • 8536900000
Quantity:

Push Wire Connectors - 2 Poles


FEATURES

1.Comply with IEC/EN60998-2-2

2.Pushwire "Quick-Connection"

3.Easy mounting (with 'fixing - snaps')

4.Ready for use with 'Cable - Clamps' (our P02-SR1)

SPECIFICATION

1.Housing : Polyamide 66

2.Metal Part : Plated Brass / Steel spring

3.Voltage (V): 450

4.Ampere (A):  10 (for operation)

5.Wiring Capacity (mm2)

Wiring Holes

(a) + (b)
0.5 - 2.5

Wiring Hole

(c)

0.5 - 0.75

Installation / User-side

(with press-release button)

Factory / Internal - side

0.5 - 1.5

0.5 - 0.75

(without press-release button)

solid only

solid only

PACKING DETAILS

1000 pcs per exp ctn
