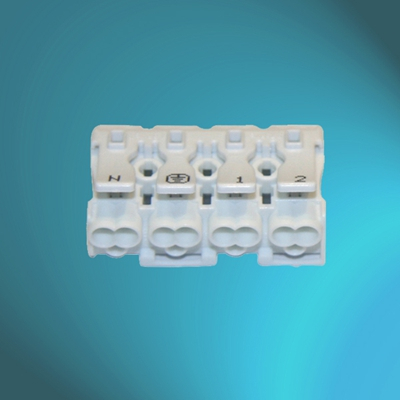

Push Wire Connectors - 4 Poles
You are here: Home » Product Category » Terminal Blocks » Push-Wire Connector » Push Wire Connectors - 4 Poles

Product Categories

Share to:

Push Wire Connectors - 4 Poles

Housing : Polyamide 66
Metal Part : Plated Brass / Steel spring
Voltage (V): 450
Ampere (A): 10 (for operation)
Comply with IEC/EN60998-2-2
Pushwire "Quick-Connection"

  • ES
  • 8538900000
Quantity:

Push Wire Connectors - 4 Poles


FEATURES
1.Comply with IEC/EN60998-2-2
2.Pushwire "Quick-Connection"
3.Easy mounting (with 'fixing - snaps')
4.Ready for use with 'Cable - Clamps' (our P02-SR2) for strain - relief '*
5.Printing on Press-release Button: upon user’s requirement
SPECIFICATION
1.Housing : Polyamide 66
2.Metal Part : Plated Brass / Steel spring
3.Voltage (V): 450
4.Ampere (A):  10 (for operation)
5.Wiring Capacity (mm2)Wiring Holes
(a) + (b)
0.5 - 2.5
Wiring Hole
( c )
0.5 - 0.75
Installation / User-side
(with press-release button)
Factory / Internal - side 0.5 - 1.5 0.5 - 0.75
(without press-release button) solid only solid only
PACKING DETAILS
1000 pcs per exp ctn
