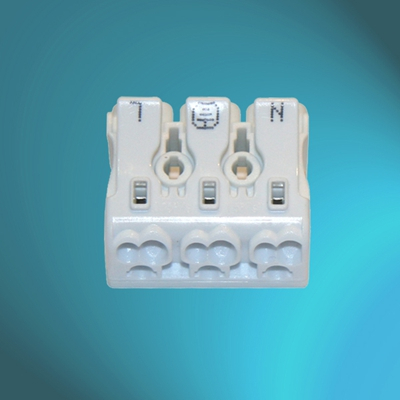

Push Wire Connectors - 3 Poles

Voltage (V): 450
Ampere (A): 10 (for operation)
Comply with IEC/EN60998-2-2
Pushwire "Quick-Connection"
  • ES

  • 8536900000

Availability:
Quantity:

Push Wire Connectors - 3 Poles


FEATURES

1.Comply with IEC/EN60998-2-2

2.Pushwire "Quick-Connection"

3.Easy mounting (with 'fixing - snaps')

4.Ready for use with 'Cable - Clamps' (our P02-SR1) for strain - relief '*

5.Printing on Press-release Button: upon user’s requirement

SPECIFICATION

1.Housing : Polyamide 66

2.Metal Part : Plated Brass / Steel spring

3.Voltage (V): 450

4.Ampere (A):  10 (for operation)

5.Wiring Capacity (mm2)

           Wiring Holes

              (a) + (b)
              0.5 - 2.5

           Wiring Hole

                 (c)

            0.5 - 0.75

Installation / User-side

(with press-release button)

Factory / Internal - side

             0.5 - 1.5

            0.5 - 0.75

(without press-release button)

             solid only

            solid only

PACKING DETAILS

500 pcs per exp ctn
