HS-BS-2X
ES
3917320000
| Quantity: | |
|---|---|

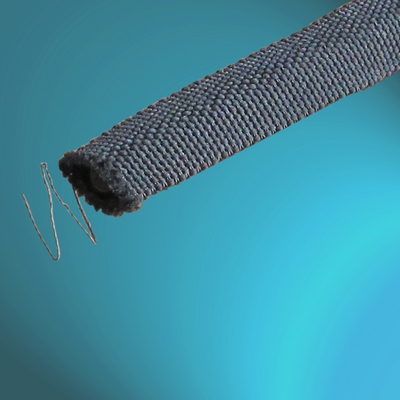

Heat-Shrink Braided Sleeving
SPECIFICATIONS | |||
MATERIAL: | POLYOLEFIN & POLYESTER FILAMENT | ||
FEATURE: | HEAT SHRINABLE | ||
SHRINK TEMP.: | 110℃ | ||
WORK TEMP.: | -40°C -125°C | ||
application： | IDEAL FOR PROTECTING RUBBER OR PLASTIC PIPES FROM ABRASION AND DAMAGE. | ||
EASE CODE | AS SUPPLIED (mm) | AFTER RECOVERY (mm) | |
Inside Diameter | Inside Diameter | Wall Thickness | |
(D) | (d) | (t) | |
HS-BS-12/6 | ≥12 | ≤6 | 1.0 |
HS-BS-20/10 | ≥20 | ≤10 | 1.0 |
HS-BS-30/15 | ≥30 | ≤15 | 1.0 |
HS-BS-40/20 | ≥40 | ≤20 | 1.0 |
HS-BS-50/25 | ≥50 | ≤25 | 1.0 |
HS-BS-60/30 | ≥60 | ≤30 | 1.0 |
HS-BS-70/35 | ≥70 | ≤35 | 1.0 |
Techical Data
PROPERTY | TEST CONDITION | DATA |
Shrink Temperture | 110℃ | |
Operation Temperture | ‘-40℃ ~ 125℃ | |
Abrasion Reistance | 23℃ | No Wear To Underlying Rubber Hose |
80℃ | No Wear To Underlying Rubber Hose | |
125℃ | No Wear To Underlying Rubber Hose | |
Thermal Aging | 3000hrs at 125 ℃ | No Deterioration In Abrasion Resistance at 80℃ |
Low Temperature Flexibility | 4hrs at -40℃,10X Diameter Mandrel | No Cracking |
Cold Impact | 200g Weight From 100 mm at -40℃ | No Cracking |
Thermal Shock | 100 Cycles Between - 40℃ and 125℃ | No Deterioration In Abrasion Resistance at 80℃ |
Fluid Resistance | 24hrs immersion at 23℃ | No Deterioration In Abrasion Resistance at 80℃ |
