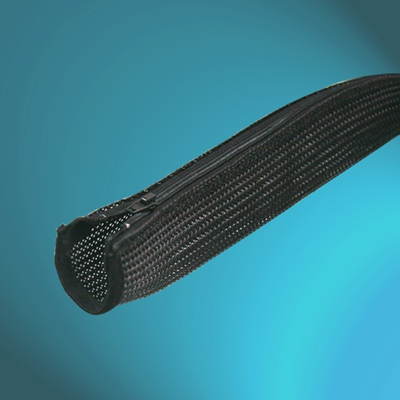

Zipper Expandable Cable Braided Sleeving
SPECIFICATIONS | |||
MATERIAL: | POLYESTER | ||
COLOUR: | BLACK | ||
FLAMMABILITY: | VW-1 | ||
WORK TEMP: | -50ºC-150ºC | ||
MELTING POINT: | 230ºC | ||
STANDARD: | UL (File No. E317364) & RoHS & HALOGEN FREE | ||
FEATURE: | THE MATERIAL HAD FLAME RETARDANT AND ABRASION RESISTANCE PROPERTY. THE ZIPPER STRUCTURE OFFERS AN ADDITIONAL PROTECTION AGAINST ABRASION. | ||
APPLICATION: | IDEAL FOR WIRES, WIRE BUNDLES, HARNESSES AND CABLE ASSEMBLIES. | ||
EASE CODE | SIZE | MAX. BUNDLE DIA. | PACKING |
(W) | m / roll | ||
BS-PET-ZP-12 | 12 | 8 | ON REQUEST |
BS-PET-ZP-20 | 20 | 15 | ON REQUEST |
BS-PET-ZP-30 | 30 | 20 | ON REQUEST |
BS-PET-ZP-50 | 50 | 35 | ON REQUEST |
BS-PET-ZP-64 | 64 | 45 | ON REQUEST |
