BS-PET-PT
ES
460290000
| Quantity: | |
|---|---|

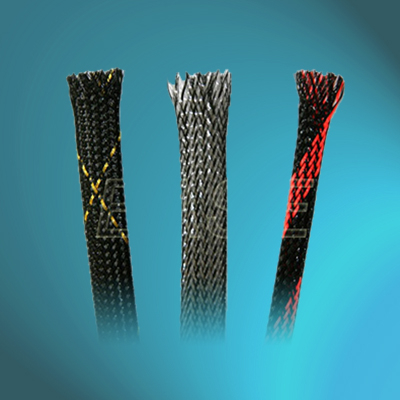

Pet Braided Sleeving with Pattern
SPECIFICATIONS | |||||
MATERIAL: | POLYESTER | ||||
COLOUR: | BLACK, GREY, WHITE, RED, GREEN, BLUE, YELLOW OR CUSTOMIZED | ||||
FLAMMABILITY: | SELF-EXTINGUISHING TO UL94-V0,UL94-V2 | ||||
WORK TEMP: | -50℃-150℃ | ||||
MELTING POINT: | 250℃±5℃ | ||||
STANDARD: | UL (FILE NO. E317364) & RoHS & HALOGEN FREE | ||||
FEATURE: | CUSTOMIZED PATTERNS AND COLORS IDENTIFICATION OF THE CABLES OR BRANDS | ||||
APPLICATION: | IDEAL FOR HIGH GRADE A/V, HDMI CABLES AND POWER SUPPLY | ||||
EASE CODE | SIZE | EXPANDABLE RANGE | PACKING | ||
MM | INCH | MIN. (l) | MAX. (O) | M/ROLL | |
BS-PET-03PT | 3 | 1/8 | 1 | 6 | 1000 |
BS-PET-06PT | 6 | 1/4 | 3 | 9 | 500 |
BS-PET-08PT | 8 | 5/16 | 5 | 16 | 350 |
BS-PET-10PT | 10 | 3/8 | 7 | 19 | 350 |
BS-PET-12PT | 12 | 1/2 | 8 | 24 | 300 |
BS-PET-16PT | 15 | 5/8 | 10 | 27 | 250 |
BS-PET-19PT | 20 | 3/4 | 14 | 30 | 200 |
BS-PET-25PT | 25 | 1 | 18 | 35 | 200 |
BS-PET-32PT | 30 | 1-1/4 | 20 | 50 | 150 |
BS-PET-38PT | 40 | 1-1/2 | 30 | 60 | 100 |
BS-PET-45PT | 45 | 1-3/4 | 35 | 75 | 100 |
BS-PET- 50PT | 50 | 2 | 40 | 80 | 100 |
BS-PET- 64PT | 64 | 2-1/2 | 45 | 105 | 100 |
BS-PET- 76PT | 76 | 3 | 64 | 120 | 100 |
