BS-PET-MF-VC-NE
ES
460290000
| Quantity: | |
|---|---|

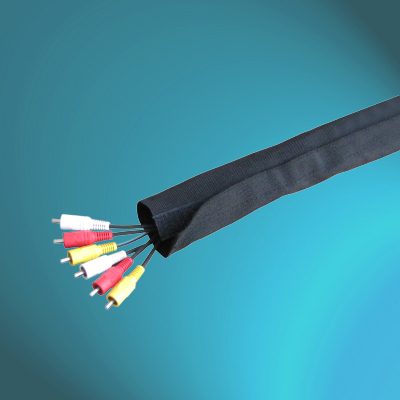

PET Braided Sleeving Multilament & Vecro & Non-Expandable
SPECIFICATIONS | |||
MATERIAL: | POLYESTER | ||
COLOUR: | BLACK，WHITE AND GREY | ||
FLAMMABILITY: | UL 224 VW - 1 | ||
WORK TEMP: | -50℃-150℃ | ||
MELTING POINT: | 250℃ | ||
STANDARD: | UL (File No. E317364) & RoHS & HALOGEN FREE | ||
FEATURE: | THE MATERIAL HAS LIGHT WEIGHT,HIGH STRENGTH,EXCELLENT FLAME RETRARDANT AND ABRASION RESISTANCE PROPERTY. THE PRODUCT CAN BE EASILY WRAPPED AND CLOSED OVER THE CABLE BUNDLE. | ||
APPLICATION | IDEAL FOR CABLE PROTECTION IN INDUSTRIAL MACHINERY, ELECTRICAL APPLICANCES,SHIPBUILDING,RAILWAY VEHICLES AND AEROSPACE. | ||
EASE CODE | SIZE | WALL THICKNESS | PACKING |
(W) | (T) | m / roll | |
BS-PET-MF-VC-20NE | 20 | 80 | 50 |
BS-PET-MF-VC-25NE | 25 | 95 | 50 |
BS-PET-MF-VC-30NE | 30 | 115 | 50 |
BS-PET-MF-VC-35NE | 35 | 130 | 50 |
BS-PET-MF-VC-40NE | 40 | 146 | 50 |
PET Braided Sleeving Multilament & Vecro & Non-Expandable
SPECIFICATIONS | |||
MATERIAL: | POLYESTER | ||
COLOUR: | BLACK，WHITE AND GREY | ||
FLAMMABILITY: | UL 224 VW - 1 | ||
WORK TEMP: | -50℃-150℃ | ||
MELTING POINT: | 250℃ | ||
STANDARD: | UL (File No. E317364) & RoHS & HALOGEN FREE | ||
FEATURE: | THE MATERIAL HAS LIGHT WEIGHT,HIGH STRENGTH,EXCELLENT FLAME RETRARDANT AND ABRASION RESISTANCE PROPERTY. THE PRODUCT CAN BE EASILY WRAPPED AND CLOSED OVER THE CABLE BUNDLE. | ||
APPLICATION | IDEAL FOR CABLE PROTECTION IN INDUSTRIAL MACHINERY, ELECTRICAL APPLICANCES,SHIPBUILDING,RAILWAY VEHICLES AND AEROSPACE. | ||
EASE CODE | SIZE | WALL THICKNESS | PACKING |
(W) | (T) | m / roll | |
BS-PET-MF-VC-20NE | 20 | 80 | 50 |
BS-PET-MF-VC-25NE | 25 | 95 | 50 |
BS-PET-MF-VC-30NE | 30 | 115 | 50 |
BS-PET-MF-VC-35NE | 35 | 130 | 50 |
BS-PET-MF-VC-40NE | 40 | 146 | 50 |
