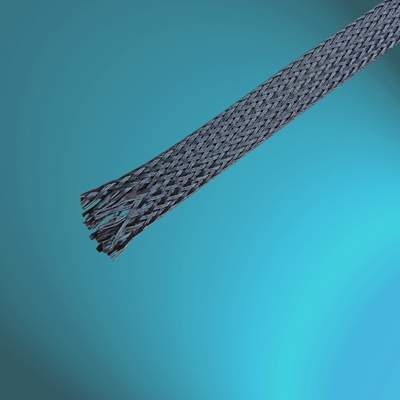

Standard PET Braided Sleeving
SPECIFICATIONS | |||||
MATERIAL: | POLYESTER | ||||
COLOUR: | BLACK, GREY, WHITE, RED, GREEN, BLUE, YELLOW OR CUSTOMIZED | ||||
FLAMMABILITY: | SELF-EXTINGUISHING TO UL94-V0,UL94-V2 | ||||
WORK TEMP: | -50℃-150℃ | ||||
MELTING POINT: | 250℃±5℃ | ||||
STANDARD: | UL (File No. E317364) & RoHS & HALOGEN FREE | ||||
FEATURE: | THE WOVEN DESIGN ENABLES ANY NUMBER OF CABLES TO BRANCH OUT ALONG THE ASSEMBLY. IT DOES NOT TRAP HEAT OR HUMIDITY, ROT-FREE. | ||||
EASE CODE | SIZE | EXPANDABLE RANGE | PACKING | ||
mm | inch | min.(l) | max.(0) | m/roll | |
BS-PET-3ST | 3 | 1/8 | 1 | 6 | 1000 |
BS-PET-6ST | 6 | 1/4 | 3 | 9 | 500 |
BS-PET-8ST | 8 | 5/16 | 5 | 16 | 350 |
BS-PET-10ST | 10 | 3/8 | 7 | 19 | 350 |
BS-PET-12ST | 12 | 1/2 | 8 | 24 | 300 |
BS-PET-16ST | 15 | 5/8 | 10 | 27 | 250 |
BS-PET-19ST | 20 | 3/4 | 14 | 30 | 200 |
BS-PET-25ST | 25 | 1 | 18 | 35 | 200 |
BS-PET-32ST | 30 | 1-1/4 | 20 | 50 | 150 |
BS-PET-38ST | 40 | 1-1/2 | 30 | 60 | 100 |
BS-PET-45ST | 45 | 1-3/4 | 35 | 75 | 100 |
BS-PET-51ST | 50 | 2 | 40 | 80 | 100 |
BS-PET-64ST | 64 | 2-1/2 | 45 | 105 | 100 |
BS-PET-76ST | 76 | 3 | 64 | 120 | 100 |
