Monofilament Aramid Braided Sleeving
You are here: Home » Product Category » Braided Cable Sleeves » PET Braided Sleeve » Monofilament Aramid Braided Sleeving

Product Categories

Share to:

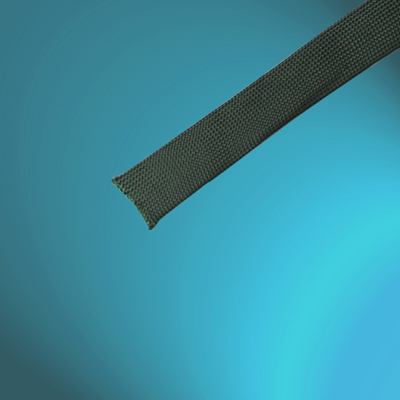

Monofilament Aramid Braided Sleeving

SPECIFICATIONS
MATERIAL: META ARAMID NOMEX
 OPERATING TEMP. RANGE:  -60℃-240℃(CONTINUOUS) UP TO 310℃
COLOUR: OLIVE GREEN
FLAME RESISTANCE: UL 224 SLEEVE CLASSIFIED VW1
UL94 BASE MATERIAL CLASSIFIED V0
WORK TEMP: -50℃-150℃
MELTING POINT: 225℃
STANDARD: UL (File No. E317364) & RoHS & HALOGEN FREE
FEATURE: THE  SPECIAL ARAMID MATERIAL HAS UP TO 310℃ TEMPERATURE, STRONG ANTI-ABRASION AND EXCELLENT RESISTANCE TO GAMMA AND X-RAYS PROPERTY.
APPLICATION: IDEAL FOR A VARIETY OF APPLICATIONS IN THE MILITARY, MARINE, AERONAUTICAL, RAILWAY AND ELECTRICAL EQUIPMENT INDUSTRIES.

  • BS-AM-MO-ST
  • ES
  • 4602900000
Quantity:

Monofilament Aramid Braided Sleeving


SPECIFICATIONS

MATERIAL:

META   ARAMID NOMEX

 OPERATING TEMP. RANGE:

 -60℃-240℃(CONTINUOUS)   UP TO 310℃

COLOUR:

OLIVE   GREEN

FLAME RESISTANCE:

UL   224 SLEEVE CLASSIFIED VW1

UL94 BASE MATERIAL CLASSIFIED V0

WORK TEMP:

-50℃-150℃

MELTING POINT:

225℃

STANDARD:

UL   (File No. E317364) & RoHS   & HALOGEN FREE

FEATURE:

THE    SPECIAL ARAMID MATERIAL HAS UP TO 310℃ TEMPERATURE, STRONG ANTI-ABRASION AND   EXCELLENT RESISTANCE TO GAMMA AND X-RAYS PROPERTY.

APPLICATION:

IDEAL   FOR A VARIETY OF APPLICATIONS IN THE MILITARY, MARINE, AERONAUTICAL, RAILWAY   AND ELECTRICAL EQUIPMENT INDUSTRIES.

EASE CODE

RECOMMENDED   DIA. RANGE (MM)

WEIGHT

 ROLL   LENGTH

min

max

(g/100m)

m

BS-AM-MO-2ST

1

2

270

100

BS-AM-MO-4ST

2

4

400

100

BS-AM-MO-6ST

4

8

800

100

BS-AM-MO-8ST

6

12

1200

50

BS-AM-MO-10ST

8

16

1400

50

NOTE: BIG SIZES ARE AVAILABLE UPON REQUESTED
