HS-DW-4X-NFR
ES
3917320000
| Quantity: | |
|---|---|

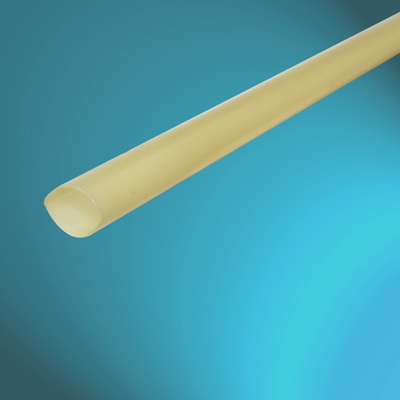

Heat Shrink Dual Wall 4X Tubing
SPECIFICATIONS | ||||
MATERIAL: | POLYOLEFIN (CROSSLINKED) | |||
FEATURE: | FLAME RETARDANT | |||
VOLTAGE: | 600 V | |||
STANDARD: | UL 224 135°C & RoHS | |||
SHRINK TEMP: | 110°C | |||
WORK TEMP: | -40°C~125°C | |||
WALL TYPE: | DUAL | |||
RATIO: | 4:1 | |||
UL FILE: | E197895 | |||
EASE CODE | AS SUPPLIED (mm) | AFTER RECOVERY (mm) | ||
Inside | Inside | Total Wall | Adhesive Wall | |
Diameter | Diameter | Thickness | ||
(D) | (d) | (t) | ||
HS-DW-5.7/1.27-NFR | ≥5.70 | ≤1.27 | 1.50± 0.3 | 0.9 |
HS-DW-8.0/1.65-NFR | ≥8.0 | ≤1.65 | 2.10± 0.3 | 1.2 |
HS-DW-10.8/2.4-NFR | ≥10.8 | ≤2.40 | 2.50± 0.5 | 1.5 |
HS-DW-17.0/4.45-NFR | ≥17.0 | ≤4.45 | 2.70± 0.5 | 1.5 |
