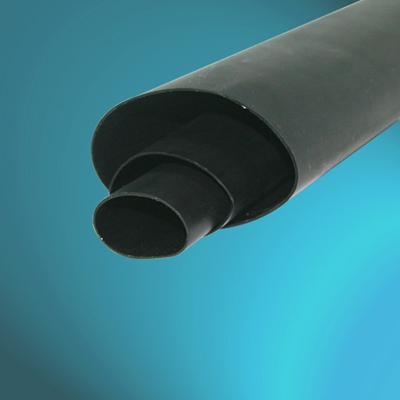

Heat Shrink Medium-Wall 3X Tubing Medium-Wall

SPECIFICATIONS
MATERIAL: POLYOLEFIN (CROSSLINKED)
FEATURE: FLAME RETARDANT
STANDARD: UL 224 135°C & RoHS
SHRINK TEMP: 120°C
WORK TEMP: -55°C~110°C
WALL TYPE: MEDIUM
RATIO: 3:1
UL FILE: E197895

  • HS-MW-3X-TA
  • ES
  • 3917320000
Quantity:

 Heat Shrink Medium-Wall 3X Tubing


SPECIFICATIONS

MATERIAL:

POLYOLEFIN (CROSSLINKED)

FEATURE:

FLAME RETARDANT

STANDARD:

UL 224 135°C & RoHS

SHRINK TEMP:

120°C

WORK TEMP:

-55°C~110°C

WALL TYPE:

MEDIUM

RATIO:

3:1

UL FILE:

E197895

EASE CODE

AS SUPPLIED (mm)

AFTER RECOVERY (mm)

Inside

Inside

Total Wall

STANDARD LENGTH

Diameter

Diameter

Thickness

 (D)

   (d)

 (t)

(m/pc)

HS-MW-8/2-TA

≥8.0

≤2.0

1.7

1.22

HS-MW-12/3-TA

≥12.0

≤3.0

2

1.22

HS-MW-16/5-TA

≥16.0

≤5.0

2.2

1.22

HS-MW-19/6-TA

≥19.0

≤6.0

2.2

1.22

HS-MW-22/6-TA

≥22.0

≤6.0

2.5

1.22

HS-MW-28/6-TA

≥28.0

≤6.0

2.5

1.22

HS-MW-33/8-TA

≥33.0

≤8.0

2.5

1.22

HS-MW-40/12-TA

≥40.0

≤12.0

2.7

1.22

HS-MW-55/16-TA

≥55.0

≤16.0

2.7

1.22
