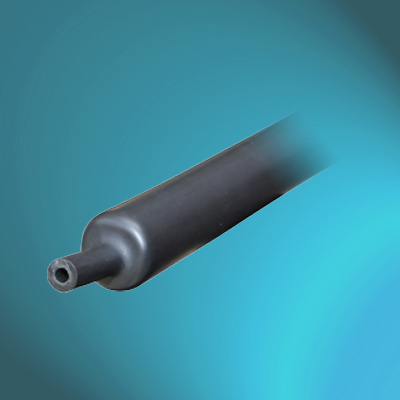

Heat-Shrink Dual-Wall 4X Tubing

SPECIFICATIONS
MATERIAL: POLYOLEFIN (CROSSLINKED)
FEATURE: FLAME RETARDANT
VOLTAGE: 600 V
RATIO: 4:1
WALL TYPE: DUAL
SHRINK TEMP: 90°C
WORK TEMP: -55°C-125°C
STANDARD: UL 224 125°C
UL FILE: E197895

  • HS-DW-4X
  • ES
  • 3917320000
Quantity:

Heat-Shrink Dual-Wall 4X Tubing


SPECIFICATIONS

MATERIAL:

POLYOLEFIN (CROSSLINKED)

FEATURE:

FLAME RETARDANT

VOLTAGE:

600 V

RATIO:

41

WALL TYPE:

DUAL

SHRINK TEMP:

90°C

WORK TEMP:

-55°C-125°C

STANDARD:

UL 224 125°C

UL FILE:

E197895

EASE CODE

AS SUPPLIED (mm)

AFTER RECOVERY (mm)

Inside

Wall

Inside

Wall

Adhesive Wall

Diameter (D)

Thickness (T)

Diameter (D)

Thickness (T)

(D)

(T)

(d)

(t)

HS-DW-4/1

4

0.5

1

1.20±0.28

0.55

HS-DW-8/2

8

0.55

2

1.55±0.28

0.7

HS-DW-12/3

12

0.75

3

2.05±0.30

0.9

HS-DW-16/4

16

0.7

4

2.10±0.30

1

HS-DW-24/6

24

0.85

6

2.60±0.35

1.2

HS-DW-32/8

32

0.9

8

2.68±0.40

1.4

HS-DW-52/13

52

1

13

2.60±0.55

1.02


TECHNICAL DATA

PROPERTY

DATA

PROPERTY

DATA

Shrink Temperature(°C)

110

Volume Resistivity(Ω-cm)


Operating Temperature Range(°C)

-180

Dielectric Strength(kV/mm)

≥15

Radial Shrinking Ratio(%)

≥50

Flammability

 VW-1

Longitudinal Change(%)

≤10

Water Absorption(%)

<0.4%

Tensile Strength (MPa)

≥10.4

Fluid Resistance

Excellent

Ultimate Elongation Ratio(%)

≥200

Copper Corrosion

No Corrosion

Aging in Circulating-Air Oven

158.0±1.0°C, 168hrs

Softening Point

120±5

After Aging

Tensile Strength (MPa)

≥7.3

Tissue Strength

>80
