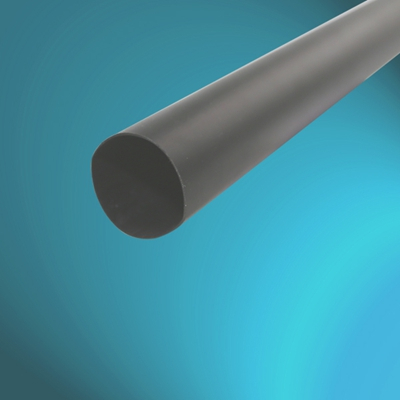

Heat - Shrink Heavy-Wall 6X Tubing

MATERIAL:

POLYOLEFIN (CROSSLINKED)

STANDARD:

UL 224 110°C & RoHS

SHRINK TEMP:

120°C

WORK TEMP:

-55°C~110°C

WALL TYPE:

HEAVY

RATIO:

6:1

UL FILE:

E197895

EASE CODE

AS SUPPLIED (mm)

AFTER RECOVERY (mm)

Inside

Inside

Total Wall

STANDARD LENGTH

Diameter

Diameter

Thickness

 (D)

   (d)

 (t)

(m/pc)

HS-HW-19/3.2

≥19.0

≤3.2

≥3.2

1.22

HS-HW-33/5.5

≥33.0

≤5.5

≥3.4

1.22

HS-HW-44.4/7.4

≥44.4

≤7.4

≥3.6

1.22

HS-HW-50.8/8.3

≥50.8

≤8.3

≥4.8

1.22

HS-HW-69.8/11.7

≥69.8

≤11.7

≥4.8

1.22

HS-HW-88.9-17.1

≥88.9

≤17.1

≥4.8

1.22

HS-HW-119.4/22.9

≥119.4

≤22.9

≥4.8

1.22

NOTE: SINGLE-WALL OF HEAT-SHRINK HEAVY WALL 6X TUBING IS ALSO AVAILABLE UPON REQUEST
