HS-DW-4X-FR
ES
3917320000
| Quantity: | |
|---|---|

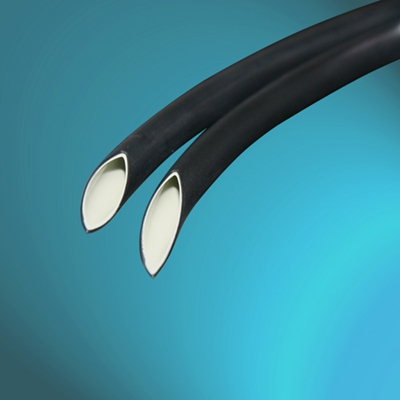

Heat Shrink Dual Wall 4X Tubing
SPECIFICATIONS | ||||
MATERIAL: | POLYOLEFIN (CROSSLINKED) | |||
FEATURE: | FLAME RETARDANT | |||
VOLTAGE: | 600 V | |||
STANDARD: | UL 224 135°C & RoHS | |||
SHRINK TEMP: | 110°C ~135°C | |||
WORK TEMP: | -55°C~135°C | |||
WALL TYPE: | DUAL | |||
RATIO: | 4:1 | |||
UL FILE: | E197895 | |||
EASE CODE | AS SUPPLIED (mm) | AFTER RECOVERY (mm) | ||
Inside | Inside | Total Wall | Adhesive Wall | |
Diameter | Diameter | Thickness | ||
(D) | (d) | (t) | ||
HS-DW-7.6/1.65-FR | ≥7.6 | ≤1.65 | 1.85 ± 0.3 | 1.15 |
HS-DW-9.0/2.30-FR | ≥9.0 | ≤2.30 | 1.90 ± 0.4 | 1.1 |
HS-DW-11.6/2.54-FR | ≥11.6 | ≤2.54 | 2.30 ± 0.4 | 1.35 |
HS-DW-17.8/4.45-FR | ≥17.8 | ≤4.45 | 2.70 ± 0.4 | 1.5 |
