Heat Shrink Medium-Wall 3X Tubing CATV type
You are here: Home » Product Category » Heat Shrink Tubes » Heat Shrink Dual-wall Tubing » Heat Shrink Medium-Wall 3X Tubing CATV type

Product Categories

Share to:

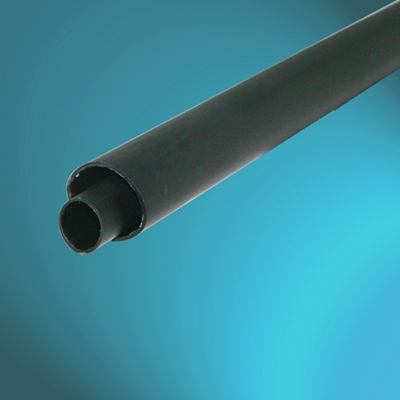

Heat Shrink Medium-Wall 3X Tubing CATV type

SPECIFICATIONS
MATERIAL: POLYOLEFIN (CROSSLINKED)
STANDARD: UL 224 135°C & RoHS
SHRINK TEMP: 120°C
WORK TEMP: -55°C~110°C
WALL TYPE: DUAL, MASTIC~COATED
RATIO: 3:1
UL FILE: E197895

  • HS-MW-3X-CATV
  • ES
  • 3917320000
Quantity:

 Heat Shrink Medium-Wall 3X Tubing CATV type


SPECIFICATIONS

MATERIAL:

POLYOLEFIN (CROSSLINKED)

STANDARD:

UL 224 135°C & RoHS

SHRINK TEMP:

120°C

WORK TEMP:

-55°C~110°C

WALL TYPE:

DUAL, MASTIC~COATED

RATIO:

3:1

UL FILE:

E197895

EASE CODE

AS SUPPLIED (mm)

AFTER RECOVERY (mm)

STANDARD LENGTH

Inside Dia.

Inside Dia.

Wall Thickness

 (D)

   (d)

 (t)

(m/pc)

HS-MW-10/3.8-CATV

10

3.8

2

1.22

HS-MW-19/5.6-CATV

19

5.6

2.4

1.22

HS-MW-28/9.0-CATV

28

9

2.4

1.22

HS-MW-33/10.0-CATV

33

10

2.4

1.22

HS-MW-38/12.0-CATV

38

12

2.4

1.22

HS-MW-45/13.0-CATV

45

13

2.4

1.22

HS-MW-55/19.0-CATV

55

19

2.4

1.22

HS-MW-70/25.0-CATV

70

25

2.4

1.22
