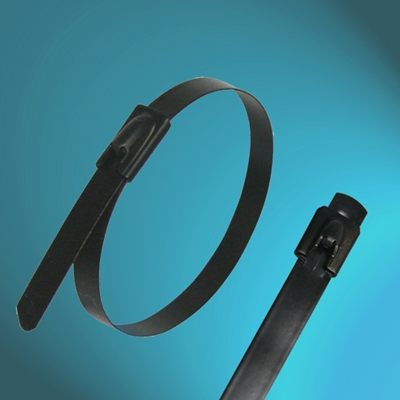

Epoxy Fully Coated Self-locking Stainless Steel Cable Ties
Product Feature:
Fully coated version with non-toxic, halogen free polyester coating.
Provide additional edge protection.
Prevent the corrosion between dissimilar materials.
Applications:
Ideal for petrochemical, industries, power stations, mining, ship-building, offshore, and other aggressive environments.
Technical Information:
Material: Stainless Steel Grade 304 or 316
304 grade stainless steel, for standard applications
316 grade stainless steel, for extra corrosive environments
Coating: Polyester
Working Temp.: -80ºC to 150ºC
Description: Black Band and Buckle
Flammability: Fireproof
Other Properties: UV-resistant, Halogen free, non toxic
Sheet:
| EASE CODE | LENGTH | WIDTH | MAX. BUNDLE DIAMETER | MIN. TENSILE STRENGTH |
| mm (inch) | mm (inch) | mm (inch) | N (1bs) | |
| CT-SS-BL-150/4.6FC-EP | 150 (5.90) | 4.6 (0.181) | 37(1.46) | 600 (135) |
| CT-SS-BL-200/4.6FC-EP | 200(7.87) | 4.6 (0.181) | 50(1.97) | 600 (135) |
| CT-SS-BL-250/4.6FC-EP | 250(9.84) | 4.6 (0.181) | 63(2.48) | 600 (135) |
| CT-SS-BL-300/4.6FC-EP | 300(11.8) | 4.6 (0.181) | 76(2.99) | 600 (135) |
| CT-SS-BL-350/4.6FC-EP | 350(13.78) | 4.6 (0.181) | 89(3.50) | 600 (135) |
| CT-SS-BL-400/4.6FC-EP | 400(15.75) | 4.6 (0.181) | 102(4.02) | 600 (135) |
| CT-SS-BL-450/4.6FC-EP | 450(17.72) | 4.6 (0.181) | 115(4.53) | 600 (135) |
| CT-SS-BL-500/4.6FC-EP | 500(19.69) | 4.6 (0.181) | 128(5.04) | 600 (135) |
| CT-SS-BL-550/4.6FC-EP | 550(21.65) | 4.6 (0.181) | 141(5.55) | 600 (135) |
| CT-SS-BL-600/4.6FC-EP | 600(23.62) | 4.6 (0.181) | 154(6.06) | 600 (135) |
| CT-SS-BL-150/7.9FC-EP | 150(5.9) | 7.9(0.311) | 37(1.46) | 800(180) |
| CT-SS-BL-200/7.9FC-EP | 200(7.87) | 7.9(0.311) | 50(1.97) | 800(180) |
| CT-SS-BL-250/7.9FC-EP | 250(9.84) | 7.9(0.311) | 63(2.48) | 800(180) |
| CT-SS-BL-300/7.9FC-EP | 300(11.8) | 7.9(0.311) | 76(2.99) | 800(180) |
| CT-SS-BL-350/7.9FC-EP | 350(13.78) | 7.9(0.311) | 89(3.50) | 800(180) |
| CT-SS-BL-400/7.9FC-EP | 400(15.75) | 7.9(0.311) | 102(4.02) | 800(180) |
| CT-SS-BL-450/7.9FC-EP | 450(17.72) | 7.9(0.311) | 115(4.53) | 800(180) |
| CT-SS-BL-500/7.9FC-EP | 500(19.69) | 7.9(0.311) | 128(5.04) | 800(180) |
| CT-SS-BL-550/7.9FC-EP | 550(21.65) | 7.9(0.311) | 141(5.55) | 800(180) |
| CT-SS-BL-600/7.9FC-EP | 600(23.62) | 7.9(0.311) | 154(6.06) | 800(180) |
| CT-SS-BL-650/7.9FC-EP | 650(25.59) | 7.9(0.311) | 167(6.57) | 800(180) |
| CT-SS-BL-700/7.9FC-EP | 700(27.56) | 7.9(0.311) | 180(7.09) | 800(180) |
| CT-SS-BL-750/7.9FC-EP | 750(29.53) | 7.9(0.311) | 191(7.52) | 800(180) |
| CT-SS-BL-800/7.9FC-EP | 800(31.50) | 7.9(0.311) | 193(7.59) | 800(180) |
