CT-SS-BL-SC-PV
ES
73269090
| Quantity: | |
|---|---|

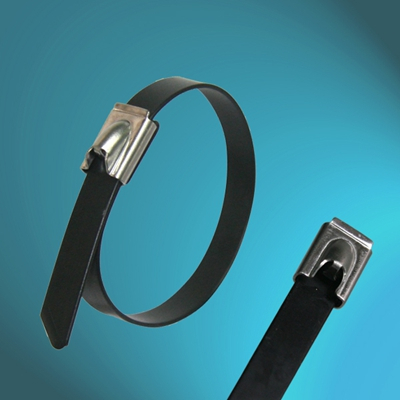

Self-locking PVC Coated Stainless Steel Cable Ties with UL CE
Applications:
Ideal for petrochemical, Industries, power stations, mining, ship-building, offshore, and other aggressive environments.
Product Features:
Metallic buckle helps to distinguish from black nylon tie.
PVC coating is thicker and softer.
Prevents corrosion between dissimilar metals.
Provide additional edge protection.
Technical Information:
Material: Stainless Steel Grade 304 or 316
304 grade stainless steel, for standard applications
316 grade stainless steel, for extra corrosive environments
Coating: PVC
Working Temp.: -50ºC to 150ºC
Description: Black Band with Metallic Buckle
Flammability: Fireproof
Other Properties: UV-resistant is available
Sheet:
EASE CODE | LENGTH | WIDTH | MAX. BUNDLE DIAMETER | MIN. TENSILE STRENGTH |
mm (inch) | mm (inch) | mm (inch) | kg (1bs) | |
CT-SS-BL-150/5.6SC-PV | 150 (5.90) | 5.6(0.22) | 37(1.46) | 370(79) |
CT-SS-BL-200/5.6SC-PV | 200(7.87) | 5.6(0.22) | 50(1.97) | 370(79) |
CT-SS-BL-250/5.6SC-PV | 250(9.84) | 5.6(0.22) | 63(2.48) | 370(79) |
CT-SS-BL-300/5.6SC-PV | 300(11.8) | 5.6(0.22) | 76(2.99) | 370(79) |
CT-SS-BL-350/5.6SC-PV | 350(13.78) | 5.6(0.22) | 89(3.50) | 370(79) |
CT-SS-BL-400/5.6SC-PV | 400(15.75) | 5.6(0.22) | 102(4.02) | 370(79) |
CT-SS-BL-450/5.6SC-PV | 450(17.72) | 5.6(0.22) | 115(4.53) | 370(79) |
CT-SS-BL-500/5.6SC-PV | 500(19.69) | 5.6(0.22) | 128(5.04) | 370(79) |
CT-SS-BL-550/5.6SC-PV | 550(21.65) | 5.6(0.22) | 141(5.55) | 370(79) |
CT-SS-BL-600/5.6SC-PV | 600(23.62) | 5.6(0.22) | 154(6.06) | 370(79) |
CT-SS-BL-650/5.6SC-PV | 650(25.29) | 5.6(0.22) | 167(6.57) | 370(79) |
CT-SS-BL-700/5.6SC-PV | 700(27.56) | 5.6(0.22) | 180(7.09) | 370(79) |
CT-SS-BL-150/9.0SC-PV | 150(5.90) | 9.0(0.35) | 37(1.46) | 405(101) |
CT-SS-BL-200/9.0SC-PV | 200(7.87) | 9.0(0.35) | 50(1.97) | 405(101) |
CT-SS-BL-250/9.0SC-PV | 250(9.84) | 9.0(0.35) | 63(2.48) | 405(101) |
CT-SS-BL-300/9.0SC-PV | 300(11.80) | 9.0(0.35) | 76(2.99) | 405(101) |
CT-SS-BL-350/9.0SC-PV | 350(13.78) | 9.0(0.35) | 89(3.50) | 405(101) |
CT-SS-BL-400/9.0SC-PV | 400(15.75) | 9.0(0.35) | 102(4.02) | 405(101) |
Self-locking PVC Coated Stainless Steel Cable Ties with UL CE
Applications:
Ideal for petrochemical, Industries, power stations, mining, ship-building, offshore, and other aggressive environments.
Product Features:
Metallic buckle helps to distinguish from black nylon tie.
PVC coating is thicker and softer.
Prevents corrosion between dissimilar metals.
Provide additional edge protection.
Technical Information:
Material: Stainless Steel Grade 304 or 316
304 grade stainless steel, for standard applications
316 grade stainless steel, for extra corrosive environments
Coating: PVC
Working Temp.: -50ºC to 150ºC
Description: Black Band with Metallic Buckle
Flammability: Fireproof
Other Properties: UV-resistant is available
Sheet:
EASE CODE | LENGTH | WIDTH | MAX. BUNDLE DIAMETER | MIN. TENSILE STRENGTH |
mm (inch) | mm (inch) | mm (inch) | kg (1bs) | |
CT-SS-BL-150/5.6SC-PV | 150 (5.90) | 5.6(0.22) | 37(1.46) | 370(79) |
CT-SS-BL-200/5.6SC-PV | 200(7.87) | 5.6(0.22) | 50(1.97) | 370(79) |
CT-SS-BL-250/5.6SC-PV | 250(9.84) | 5.6(0.22) | 63(2.48) | 370(79) |
CT-SS-BL-300/5.6SC-PV | 300(11.8) | 5.6(0.22) | 76(2.99) | 370(79) |
CT-SS-BL-350/5.6SC-PV | 350(13.78) | 5.6(0.22) | 89(3.50) | 370(79) |
CT-SS-BL-400/5.6SC-PV | 400(15.75) | 5.6(0.22) | 102(4.02) | 370(79) |
CT-SS-BL-450/5.6SC-PV | 450(17.72) | 5.6(0.22) | 115(4.53) | 370(79) |
CT-SS-BL-500/5.6SC-PV | 500(19.69) | 5.6(0.22) | 128(5.04) | 370(79) |
CT-SS-BL-550/5.6SC-PV | 550(21.65) | 5.6(0.22) | 141(5.55) | 370(79) |
CT-SS-BL-600/5.6SC-PV | 600(23.62) | 5.6(0.22) | 154(6.06) | 370(79) |
CT-SS-BL-650/5.6SC-PV | 650(25.29) | 5.6(0.22) | 167(6.57) | 370(79) |
CT-SS-BL-700/5.6SC-PV | 700(27.56) | 5.6(0.22) | 180(7.09) | 370(79) |
CT-SS-BL-150/9.0SC-PV | 150(5.90) | 9.0(0.35) | 37(1.46) | 405(101) |
CT-SS-BL-200/9.0SC-PV | 200(7.87) | 9.0(0.35) | 50(1.97) | 405(101) |
CT-SS-BL-250/9.0SC-PV | 250(9.84) | 9.0(0.35) | 63(2.48) | 405(101) |
CT-SS-BL-300/9.0SC-PV | 300(11.80) | 9.0(0.35) | 76(2.99) | 405(101) |
CT-SS-BL-350/9.0SC-PV | 350(13.78) | 9.0(0.35) | 89(3.50) | 405(101) |
CT-SS-BL-400/9.0SC-PV | 400(15.75) | 9.0(0.35) | 102(4.02) | 405(101) |
