CT-SS-WL-150/10SC-EP
ES
73269019
| Quantity: | |
|---|---|

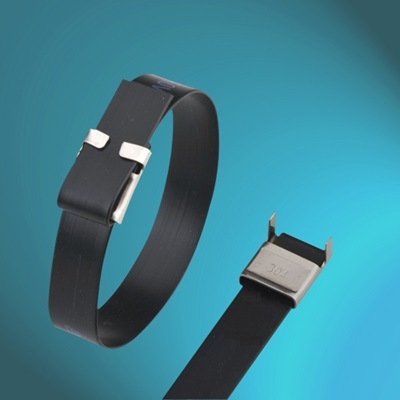

Wing Type Epoxy Semi-Coated Stainless Steel Cable Ties
Applications:
Ideal for petrochemical, traffic signal facilities, oil and gas transmission, telecommunication, power station, mining, car/plane
ip-building, offshore and any other aggressive environments.Technical Information:
Material: Stainless Steel Grade 304 or 316Sheet:
EASE CODE | LENGTH | WIDTH | MAX. BUNDLE DIAMETER | MIN. TENSILE STRENGTH |
mm (inch) | mm (inch) | mm (inch) | N (lbs) | |
CT-SS-WL-150/10SC-EP | 150 (5.90) | 10(0.39) | 37(1.46) | 1000(225) |
CT-SS-WL-200/10SC-EP | 200(7.87) | 10(0.39) | 50(1.97) | 1000(225) |
CT-SS-WL-250/10SC-EP | 250(9.84) | 10(0.39) | 63(2.48) | 1000(225) |
CT-SS-WL-300/10SC-EP | 300(11.8) | 10(0.39) | 76(2.99) | 1000(225) |
CT-SS-WL-350/10SC-EP | 350(13.78) | 10(0.39) | 89(3.50) | 1000(225) |
CT-SS-WL-400/10SC-EP | 400(15.75) | 10(0.39) | 102(4.02) | 1000(225) |
CT-SS-WL-450/10SC-EP | 450(17.72) | 10(0.39) | 115(4.53) | 1000(225) |
CT-SS-WL-500/10SC-EP | 500(19.69) | 10(0.39) | 128(5.04) | 1000(225) |
CT-SS-WL-550/10SC-EP | 550(21.65) | 10(0.39) | 141(5.55) | 1000(225) |
CT-SS-WL-600/10SC-EP | 600(23.62) | 10(0.39) | 154(6.06) | 1000(225) |
CT-SS-WL-650/10SC-EP | 650(25.6) | 10(0.39) | 167(6.57) | 1000(225) |
CT-SS-WL-150/12SC-EP | 150 (5.90) | 12 (0.472) | 37(1.46) | 1200(270) |
CT-SS-WL-200/12SC-EP | 200(7.87) | 12 (0.472) | 50(1.97) | 1200(270) |
CT-SS-WL-250/12SC-EP | 250(9.84) | 12 (0.472) | 63(2.48) | 1200(270) |
CT-SS-WL-300/12SC-EP | 300(11.8) | 12 (0.472) | 76(2.99) | 1200(270) |
CT-SS-WL-350/12SC-EP | 350(13.78) | 12 (0.472) | 89(3.50) | 1200(270) |
CT-SS-WL-400/12SC-EP | 400(15.75) | 12 (0.472) | 102(4.02) | 1200(270) |
CT-SS-WL-450/12SC-EP | 450(17.72) | 12 (0.472) | 115(4.53) | 1200(270) |
CT-SS-WL-500/12SC-EP | 500(19.69) | 12 (0.472) | 128(5.04) | 1200(270) |
CT-SS-WL-550/12SC-EP | 550(21.65) | 12 (0.472) | 141(5.55) | 1200(270) |
CT-SS-WL-600/12SC-EP | 600(23.62) | 12 (0.472) | 154(6.06) | 1200(270) |
CT-SS-WL-650/12SC-EP | 650(25.59) | 12 (0.472) | 167(6.57) | 1200(270) |
CT-SS-WL-700/12SC-EP | 700(27.56) | 12 (0.472) | 180(7.09) | 1200(270) |
CT-SS-WL-200/15SC-EP | 200(7.87) | 15(0.59) | 50(1.97) | 1500(337) |
CT-SS-WL-250/15SC-EP | 250(9.84) | 15(0.59) | 63(2.48) | 1500(337) |
CT-SS-WL-300/15SC-EP | 300(11.8) | 15(0.59) | 76(2.99) | 1500(337) |
CT-SS-WL-350/15SC-EP | 350(13.78) | 15(0.59) | 89(3.50) | 1500(337) |
CT-SS-WL-400/15SC-EP | 400(15.75) | 15(0.59) | 102(4.02) | 1500(337) |
CT-SS-WL-450/15SC-EP | 450(17.72) | 15(0.59) | 115(4.53) | 1500(337) |
CT-SS-WL-500/15SC-EP | 500(19.69) | 15(0.59) | 128(5.04) | 1500(337) |
CT-SS-WL-550/15SC-EP | 550(21.65) | 15(0.59) | 141(5.55) | 1500(337) |
CT-SS-WL-600/15SC-EP | 600(23.62) | 15(0.59) | 154(6.06) | 1500(337) |
CT-SS-WL-650/15SC-EP | 650(25.59) | 15(0.59) | 167(6.57) | 1500(337) |
CT-SS-WL-700/15SC-EP | 700(27.56) | 15(0.59) | 180(7.09) | 1500(337) |
CT-SS-WL-750/15SC-EP | 750(29.53) | 15(0.59) | 191(7.52) | 1500(337) |
CT-SS-WL-800/15SC-EP | 800(31.5) | 15(0.59) | 193(7.59) | 1500(337) |
CT-SS-WL-1000/15SC-EP | 1000(39.37) | 15(0.59) | 206(8.11) | 1500(337) |
