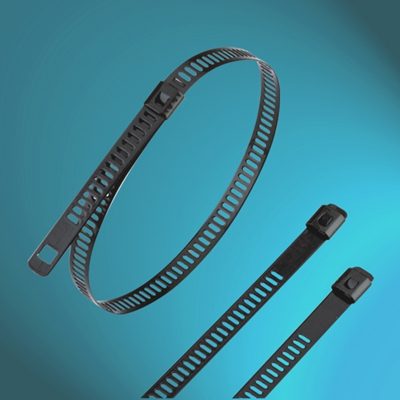

Epoxy Fully-Coated Ladder Single-Lock Stainless Steel Cable Ties
Applications:
Ideal for petrochemical, industries, power stations, mining, shipbuilding, offshore and other aggressive environments.Technical Information:
Material: Stainless Steel Grade 304 or 316Sheet:
EASE CODE . | LENGTH | WIDTH | MAX. BUNDLE DIAMETER | MIN. TENSILE STRENGTH |
mm (inch) | mm (inch) | mm (inch) | N(1bs) | |
CT-SS-LS-150/7FC-EP | 150 (5.90) | 7 (0.276) | 33(1.30) | 600(135) |
CT-SS-LS-225/7FC-EP | 225(8.86) | 7 (0.276) | 57(2.20) | 600(135) |
CT-SS-LS-300/7FC-EP | 300(11.8) | 7 (0.276) | 81(3.20) | 600(135) |
CT-SS-LS-335/7FC-EP | 335(13.2) | 7 (0.276) | 92(3.60) | 600(135) |
CT-SS-LS-400/7FC-EP | 400(15.7) | 7 (0.276) | 113(4.40) | 600(135) |
CT-SS-LS-450/7FC-EP | 450(17.7) | 7 (0.276) | 129(5.10) | 600(135) |
CT-SS-LS-490/7FC-EP | 490(19.3) | 7 (0.276) | 141(5.60) | 600(135) |
CT-SS-LS-550/7FC-EP | 550(21.7) | 7 (0.276) | 161(6.30) | 600(135) |
CT-SS-LS-600/7FC-EP | 600(23.6) | 7 (0.276) | 176(6.90) | 600(135) |
CT-SS-LS-650/7FC-EP | 650(25.6) | 7 (0.276) | 192(7.60) | 600(135) |
CT-SS-LS-700/7FC-EP | 700(27.6) | 7 (0.276) | 208(8.02) | 600(135) |
CT-SS-LS-750/7FC-EP | 750(29.5) | 7 (0.276) | 224(8.80) | 600(135) |
CT-SS-LS-800/7FC-EP | 800(31.5) | 7 (0.276) | 240(9.40) | 600(135) |
Epoxy Fully-Coated Ladder Single-Lock Stainless Steel Cable Ties
Applications:
Ideal for petrochemical, industries, power stations, mining, shipbuilding, offshore and other aggressive environments.Technical Information:
Material: Stainless Steel Grade 304 or 316Sheet:
EASE CODE . | LENGTH | WIDTH | MAX. BUNDLE DIAMETER | MIN. TENSILE STRENGTH |
mm (inch) | mm (inch) | mm (inch) | N(1bs) | |
CT-SS-LS-150/7FC-EP | 150 (5.90) | 7 (0.276) | 33(1.30) | 600(135) |
CT-SS-LS-225/7FC-EP | 225(8.86) | 7 (0.276) | 57(2.20) | 600(135) |
CT-SS-LS-300/7FC-EP | 300(11.8) | 7 (0.276) | 81(3.20) | 600(135) |
CT-SS-LS-335/7FC-EP | 335(13.2) | 7 (0.276) | 92(3.60) | 600(135) |
CT-SS-LS-400/7FC-EP | 400(15.7) | 7 (0.276) | 113(4.40) | 600(135) |
CT-SS-LS-450/7FC-EP | 450(17.7) | 7 (0.276) | 129(5.10) | 600(135) |
CT-SS-LS-490/7FC-EP | 490(19.3) | 7 (0.276) | 141(5.60) | 600(135) |
CT-SS-LS-550/7FC-EP | 550(21.7) | 7 (0.276) | 161(6.30) | 600(135) |
CT-SS-LS-600/7FC-EP | 600(23.6) | 7 (0.276) | 176(6.90) | 600(135) |
CT-SS-LS-650/7FC-EP | 650(25.6) | 7 (0.276) | 192(7.60) | 600(135) |
CT-SS-LS-700/7FC-EP | 700(27.6) | 7 (0.276) | 208(8.02) | 600(135) |
CT-SS-LS-750/7FC-EP | 750(29.5) | 7 (0.276) | 224(8.80) | 600(135) |
CT-SS-LS-800/7FC-EP | 800(31.5) | 7 (0.276) | 240(9.40) | 600(135) |
