CT-SS-RE-UC
ES
73269090
| Quantity: | |
|---|---|

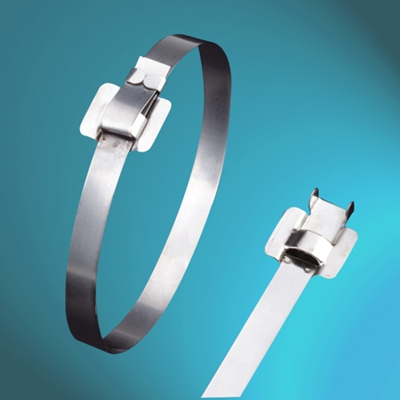

304 316 Releasable Uncoated Stainless Steel Cable Ties
Product Feature:
Releasable and Re-usable
Fast, easy and reliable installation.
Slots at the end of the tie allow the use of a hook-type tool.
Additional ears can be bent back over the fastened tie to increase the tensile strength.
Strap can go through the buckle twice for high tensile strength.
Uncoated version for high temperature applications.
Applications:
Ideal for used in Petrochemical and food processing industries, power stations, mining, shipbuilding, offshore and other aggressive environments.
Technical Inoformation:
Material: Stainless Steel Grade 304 or 316
304 grade stainless steel, for standard applications.
316 grade stainless steel, for the most corrosive environments.
Working Temp.: -80ºC to 500ºC
Description: Entirely Metallic
Flammability: Fireproof
Other Properties: UV-resistant
Sheet:
| EASE CODE | LENGTH | WIDTH | MAX. BUNDLE DIAMETER | MIN. TENSILE STRENGTH |
| mm (inch) | mm (inch) | mm (inch) | N (lbs) | |
| CT-SS-RE-150/10UC | 150 (5.90) | 10 (0.39) | 33(1.30) | 1000(225) |
| CT-SS-RE-190/10UC | 190(7.50) | 10 (0.39) | 46(1.80) | 1000(225) |
| CT-SS-RE-250/10UC | 250(9.80) | 10 (0.39) | 65(2.60) | 1000(225) |
| CT-SS-RE-300/10UC | 300(11.8) | 10 (0.39) | 81(3.20) | 1000(225) |
| CT-SS-RE-350/10UC | 350(13.8) | 10 (0.39) | 97(3.80) | 1000(225) |
| CT-SS-RE-400/10UC | 400(15.7) | 10 (0.39) | 113(4.40) | 1000(225) |
| CT-SS-RE-450/10UC | 450(17.7) | 10 (0.39) | 129(5.10) | 1000(225) |
| CT-SS-RE-490/10UC | 490(19.3) | 10 (0.39) | 141(5.60) | 1000(225) |
| CT-SS-RE-550/10UC | 550(21.7) | 10 (0.39) | 161(6.30) | 1000(225) |
| CT-SS-RE-600/10UC | 600(23.6) | 10 (0.39) | 176(6.90) | 1000(225) |
| CT-SS-RE-650/10UC | 650(25.6) | 10 (0.39) | 192(7.60) | 1000(225) |
| CT-SS-RE-700/10UC | 700(27.6) | 10 (0.39) | 208(8.20) | 1000(225) |
