CT-SS-OL-SC-EP
ES
73269090
| Quantity: | |
|---|---|

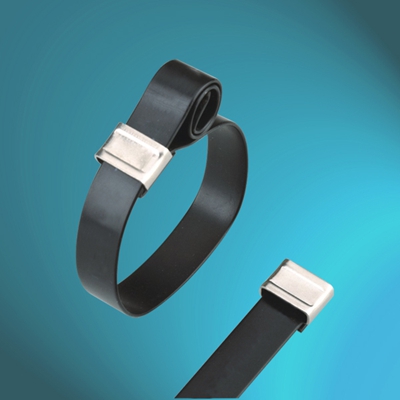

Stainless Steel Cable Ties- O Type Epoxy Coated Tie
Product Feature:
No slippage when cut end is rolled in.
Metallic buckle helps to distinguish from black nylon tie.
Coated strap with non-toxic, halogen free polyester coating
Provide additional edge protection.
Prevent the corrosion between dissimilar materials.
Applications:
Ideal for petrochemical, industries, power stations, mining, ship-building, offshore, and other aggressive environments.
Technical Information:
Material: Stainless Steel Grade 304 or 316
304 grade non-magnetic stainless steel, for standard applications.
316 grade(marine grade) stainless steel, for extra corrosive environments.
Coating: Epoxy
Working Temp.: -50℃ to 150℃
Description: Black Strap with Metallic Buckle
Flammability: Fireproof
Other Properties: UV-resistant, Halogen free, non toxic
Sheet:
EASE CODE | LENGTH | WIDTH | MAX. BUNDLE DIAMETER | MIN. TENSILE STRENGTH |
mm (inch) | mm (inch) | mm (inch) | N (1bs) | |
CT-SS-OL-150/12SC-EP | 150 (5.90) | 12 (0.47) | 37(1.46) | 1200 (270) |
CT-SS-OL-200/12SC-EP | 200(7.87) | 12 (0.47) | 50(1.97) | 1200 (270) |
CT-SS-OL-250/12SC-EP | 250(9.84) | 12 (0.47) | 63(2.48) | 1200 (270) |
CT-SS-OL-300/12SC-EP | 300(11.8) | 12 (0.47) | 76(2.99) | 1200 (270) |
CT-SS-OL-350/12SC-EP | 350(13.78) | 12 (0.47) | 89(3.50) | 1200 (270) |
CT-SS-OL-400/12SC-EP | 400(15.75) | 12 (0.47) | 102(4.02) | 1200 (270) |
CT-SS-OL-450/12SC-EP | 450(17.72) | 12 (0.47) | 115(4.53) | 1200 (270) |
CT-SS-OL-500/12SC-EP | 500(19.69) | 12 (0.47) | 128(5.04) | 1200 (270) |
CT-SS-OL-550/12SC-EP | 550(21.65) | 12 (0.47) | 141(5.55) | 1200 (270) |
CT-SS-OL-600/12SC-EP | 600(23.62) | 12 (0.47) | 154(6.06) | 1200 (270) |
CT-SS-OL-650/12SC-EP | 650(25.60) | 12 (0.47) | 167(6.57) | 1200 (270) |
CT-SS-OL-700/12SC-EP | 700(27.60) | 12 (0.47) | 180(7.09) | 1200 (270) |
CT-SS-OL-800/12SC-EP | 800(31.5) | 12(0.47) | 193(7.59) | 1200 (270) |
CT-SS-OL-200/15SC-EP | 200(7.87) | 15(0.59) | 50(1.97) | 1500(337) |
CT-SS-OL-250/15SC-EP | 250(9.84) | 15(0.59) | 63(2.48) | 1500(337) |
CT-SS-OL-300/15SC-EP | 300(11.8) | 15(0.59) | 76(2.99) | 1500(337) |
CT-SS-OL-350/15SC-EP | 350(13.78) | 15(0.59) | 89(3.50) | 1500(337) |
CT-SS-OL-400/15SC-EP | 400(15.75) | 15(0.59) | 102(4.02) | 1500(337) |
CT-SS-OL-450/15SC-EP | 450(17.72) | 15(0.59) | 115(4.53) | 1500(337) |
CT-SS-OL-500/15SC-EP | 500(19.69) | 15(0.59) | 128(5.04) | 1500(337) |
CT-SS-OL-550/15SC-EP | 550(21.65) | 15(0.59) | 141(5.55) | 1500(337) |
CT-SS-OL-600/15SC-EP | 600(23.62) | 15(0.59) | 154(6.06) | 1500(337) |
CT-SS-OL-650/15SC-EP | 650(25.59) | 15(0.59) | 167(6.57) | 1500(337) |
CT-SS-OL-700/15SC-EP | 700(27.56) | 15(0.59) | 180(7.09) | 1500(337) |
CT-SS-OL-750/15SC-EP | 750(29.53) | 15(0.59) | 191(7.52) | 1500(337) |
CT-SS-OL-800/15SC-EP | 800(31.5) | 15(0.59) | 193(7.59) | 1500(337) |
CT-SS-OL-1000/15SC-EP | 1000(39.37) | 15(0.59) | 1206(8.11) | 1500(337) |
