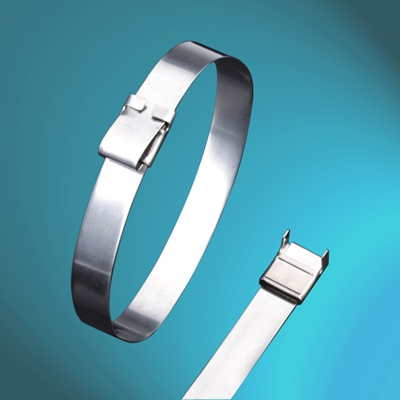

Uncoated Stainless Steel Cable Ties Wing Lock

MATERIAL:

STAINLESS STEEL 304 OR 316

FEATURE:

THE SS TIES WITH THE UNIQUE BUCKLE LOCKING MECHANISM IS DESIGNED FOR THE APPLICATION WHERE HIGH TENSILE STRENGTH, NON-FLAMMABILITY, HIGH RESISTANCE TO ACETIC ACID, ALKALI ACID   AND SULPHURIC ACID ARE NEEDED.

COLOUR:

BLACK EPOXY (STANDARD)

STANDARD:

UL & DNV

WORK TEMP.:

-80℃～150℃

EASE CODE .

LENGTH

WIDTH

MAX. BUNDLE DIAMETER

MIN. TENSILE STRENGTH

mm (inch)

mm (inch)

mm (inch)

N (1bs)

CT-SS-WL-150/12UC

150(5.90)

12(0.47)

37(1.46)

1200(270)

CT-SS-WL-200/12UC

200(7.87)

12(0.47)

50(1.97)

1200(270)

CT-SS-WL-250/12UC

250(9.84)

12(0.47)

63(2.48)

1200(270)

CT-SS-WL-300/12UC

300(11.80)

12(0.47)

76(2.99)

1200(270)

CT-SS-WL-350/12UC

350(13.78)

12(0.47)

89(3.50)

1200(270)

CT-SS-WL-400/12UC

400(15.75)

12(0.47)

102(4.02)

1200(270)

CT-SS-WL-450/12UC

450(17.72)

12(0.47)

115(4.53)

1200(270)

CT-SS-WL-500/12UC

500(19.69)

12(0.47)

128(5.04)

1200(270)

CT-SS-WL-550/12UC

550(21.65)

12(0.47)

141(5.55)

1200(270)

CT-SS-WL-600/12UC

600(23.62)

12(0.47)

154(6.06)

1200(270)

CT-SS-WL-650/12UC

650(25.60)

12(0.47)

167(6.57)

1200(270)

CT-SS-WL-700/12UC

700(27.60)

12(0.47)

180(7.09)

1200(270)

CT-SS-WL-800/12UC

800(31.50)

12(0.47)

193(7.59)

1200(270)

CT-SS-WL-200/15UC

200(7.87)

15(0.59)

50(1.97)

1500(337)

CT-SS-WL-250/15UC

250(9.84)

15(0.59)

63(2.48)

1500(337)

CT-SS-WL-300/15UC

300(11.80)

15(0.59)

76(2.99)

1500(337)

CT-SS-WL-350/15UC

350(13.78)

15(0.59)

89(3.50)

1500(337)

CT-SS-WL-400/15UC

400(15.75)

15(0.59)

102(4.02)

1500(337)

CT-SS-WL-450/15UC

450(17.72)

15(0.59)

115(4.53)

1500(337)

CT-SS-WL-500/15UC

500(19.69)

15(0.59)

128(5.04)

1500(337)

CT-SS-WL-550/15UC

550(21.65)

15(0.59)

141(5.55)

1500(337)

CT-SS-WL-600/15UC

600(23.62)

15(0.59)

154(6.06)

1500(337)

CT-SS-WL-650/15UC

650(25.59)

15(0.59)

167(6.57)

1500(337)

CT-SS-WL-700/15UC

700(27.56)

15(0.59)

180(7.09)

1500(337)

CT-SS-WL-750/15UC

750(29.53)

15(0.59)

191(7.52)

1500(337)

CT-SS-WL-800/15UC

800(31.50)

15(0.59)

193(7.59)

1500(337)

CT-SS-WL-1000/15UC

1000(39.37)

15(0.59)

206(8.11)

1500(337)
