CT-SS-BL-150/4.6UC
ES
73269090
Availability: | |
---|---|
Quantity: | |

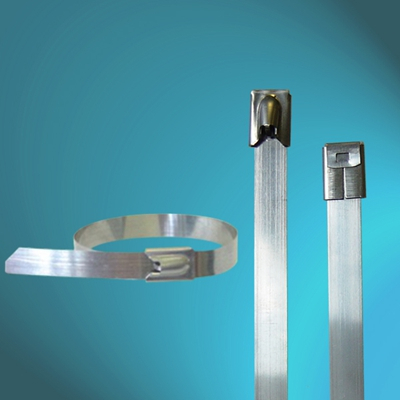

Uncoated Ball Lock Stainless Steel Cable Ties
Product Feature:
Uncoated version, for high temperature applications
Applications:
Ideal for petrochemical, food industry, industries, power stations, mining, ship-building, offshore and any other aggressive environments
Technical Information:
Material: Stainless Steel Grade 304 or 316
304 grade stainless steel, for standard applications
316 grade stainless steel, for extra corrosive environments
Standard: UL & DNV
Working Temp.: -50ºC to 150ºC
Description: Black Band with Metallic Buckle
Flammability: Fireproof
Other Properties: UV-resistant, non toxic
Sheet:
EASE CODE | LENGTH | WIDTH | MAX. BUNDLE DIAMETER | MIN. TENSILE STRENGTH |
mm (inch) | mm (inch) | mm (inch) | N (lbs) | |
CT-SS-BL-150/4.6UC | 150 (5.90) | 4.6 (0.181) | 37(1.46) | 600 (135) |
CT-SS-BL-200/4.6UC | 200(7.87) | 4.6 (0.181) | 50(1.97) | 600 (135) |
CT-SS-BL-250/4.6UC | 250(9.84) | 4.6 (0.181) | 63(2.48) | 600 (135) |
CT-SS-BL-300/4.6UC | 300(11.8) | 4.6 (0.181) | 76(2.99) | 600 (135) |
CT-SS-BL-350/4.6UC | 350(13.78) | 4.6 (0.181) | 89(3.50) | 600 (135) |
CT-SS-BL-400/4.6UC | 400(15.75) | 4.6 (0.181) | 102(4.02) | 600 (135) |
CT-SS-BL-450/4.6UC | 450(17.72) | 4.6 (0.181) | 115(4.53) | 600 (135) |
CT-SS-BL-500/4.6UC | 500(19.69) | 4.6 (0.181) | 128(5.04) | 600 (135) |
CT-SS-BL-550/4.6UC | 550(21.65) | 4.6 (0.181) | 141(5.55) | 600 (135) |
CT-SS-BL-600/4.6UC | 600(23.62) | 4.6 (0.181) | 154(6.06) | 600 (135) |
CT-SS-BL-150/7.9UC | 150(5.9) | 7.9(0.311) | 37(1.46) | 800(180) |
CT-SS-BL-200/7.9UC | 200(7.87) | 7.9(0.311) | 50(1.97) | 800(180) |
CT-SS-BL-250/7.9UC | 250(9.84) | 7.9(0.311) | 63(2.48) | 800(180) |
CT-SS-BL-300/7.9UC | 300(11.8) | 7.9(0.311) | 76(2.99) | 800(180) |
CT-SS-BL-350/7.9UC | 350(13.78) | 7.9(0.311) | 89(3.50) | 800(180) |
CT-SS-BL-400/7.9UC | 400(15.75) | 7.9(0.311) | 102(4.02) | 800(180) |
CT-SS-BL-450/7.9UC | 450(17.72) | 7.9(0.311) | 115(4.53) | 800(180) |
CT-SS-BL-500/7.9UC | 500(19.69) | 7.9(0.311) | 128(5.04) | 800(180) |
CT-SS-BL-550/7.9UC | 550(21.65) | 7.9(0.311) | 141(5.55) | 800(180) |
CT-SS-BL-600/7.9UC | 600(23.62) | 7.9(0.311) | 154(6.06) | 800(180) |
CT-SS-BL-650/7.9UC | 650(25.59) | 7.9(0.311) | 167(6.57) | 800(180) |
CT-SS-BL-700/7.9UC | 700(27.56) | 7.9(0.311) | 180(7.09) | 800(180) |
CT-SS-BL-750/7.9UC | 750(29.53) | 7.9(0.311) | 191(7.52) | 800(180) |
CT-SS-BL-800/7.9UC | 800(31.5) | 7.9(0.311) | 193(7.59) | 800(180) |
CT-SS-BL-150/12UC | 150(5.90) | 12(0.472) | 37(1.46) | 1200(270) |
CT-SS-BL-200/12UC | 200(7.87) | 12(0.472) | 50(1.97) | 1200(270) |
CT-SS-BL-250/12UC | 250(9.84) | 12(0.472) | 63(2.48) | 1200(270) |
CT-SS-BL-300/12UC | 300(11.8) | 12(0.472) | 76(2.99) | 1200(270) |
CT-SS-BL-350/12UC | 350(13.78) | 12(0.472) | 89(3.50) | 1200(270) |
CT-SS-BL-400/12UC | 400(15.75) | 12(0.472) | 102(4.02) | 1200(270) |
CT-SS-BL-450/12UC | 450(17.72) | 12(0.472) | 115(4.53) | 1200(270) |
CT-SS-BL-500/12UC | 500(19.69) | 12(0.472) | 128(5.04) | 1200(270) |
CT-SS-BL-550/12UC | 550(21.65) | 12(0.472) | 141(5.55) | 1200(270) |
CT-SS-BL-600/12UC | 600(23.62) | 12(0.472) | 154(6.06) | 1200(270) |
CT-SS-BL-650/12UC | 650(25.59) | 12(0.472) | 167(6.57) | 1200(270) |
CT-SS-BL-700/12UC | 700(27.56) | 12(0.472) | 180(7.09) | 1200(270) |
CT-SS-BL-200/15UC | 200(7.87) | 15(0.59) | 50(1.97) | 1500(337) |
CT-SS-BL-250/15UC | 250(9.84) | 15(0.59) | 63(2.48) | 1500(337) |
CT-SS-BL-300/15UC | 300(11.80) | 15(0.59) | 76(2.99) | 1500(337) |
CT-SS-BL-350/15UC | 350(13.78) | 15(0.59) | 89(3.50) | 1500(337) |
CT-SS-BL-400/15UC | 400(15.75) | 15(0.59) | 102(4.02) | 1500(337) |
CT-SS-BL-450/15UC | 450(17.72) | 15(0.59) | 115(4.53) | 1500(337) |
CT-SS-BL-500/15UC | 500(19.69) | 15(0.59) | 128(5.04) | 1500(337) |
CT-SS-BL-550/15UC | 550(21.65) | 15(0.59) | 141(5.55) | 1500(337) |
CT-SS-BL-600/15UC | 600(23.62) | 15(0.59) | 154(6.06) | 1500(337) |
CT-SS-BL-650/15UC | 650(25.59) | 15(0.59) | 167(6.57) | 1500(337) |
CT-SS-BL-700/15UC | 700(27.56) | 15(0.59) | 180(7.09) | 1500(337) |
CT-SS-BL-750/15UC | 750(29.53) | 15(0.59) | 191(7.52) | 1500(337) |
CT-SS-BL-800/15UC | 800(31.5) | 15(0.59) | 193(7.59) | 1500(337) |
CT-SS-BL-1000/15UC | 1000(39.37) | 15(0.59) | 206(8.11) | 1500(337) |
