Ladder Single-Lock Uncoated Stainless Steel Cable Ties
You are here: Home » Product Category » Cable Ties » Stainless Steel Cable Ties » Ladder Single-Lock Uncoated Stainless Steel Cable Ties

Product Categories

Share to:

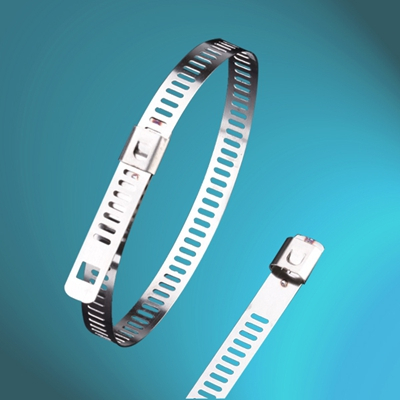

Ladder Single-Lock Uncoated Stainless Steel Cable Ties

Technical Inoformation:
Material: Stainless Steel Grade 304 or 316
304 grade stainless steel, for standard applications
316 grade stainless steel, for the most corrosive environments
Working Temp.: -80℃ to 500℃
Description: Entirely Metallic
Flammability: Fireproof
Other Properties: UV-resistant

  • CT-SS-LM-150/7UC
  • ES
  • 73269019
Quantity:

Ladder Single-lock Uncoated Stainless Steel Cable Ties


Applications:

Ideal for used in Petrochemical and food processing industries, power stations, mining, shipbuilding, offshore and other aggressive environments.


Product Feature:
Strong self-locking mechanism(Pawl and ratchet) saves time on installation.
Flat and low profile head(no sharp edge), for easy installation.
Larger slot at the end, allows the use of a hook-type tool.
Uncoated version for high temperature applications.


Technical Inoformation:
Material: Stainless Steel Grade 304 or 316
304 grade stainless steel, for standard applications
316 grade stainless steel, for the most corrosive environments
Working Temp.: -80℃ to 500℃
Description: Entirely Metallic
Flammability: Fireproof
Other Properties: UV-resistant


Sheet:

EASE CODELENGTHWIDTHMAX. BUNDLE DIAMETERMIN. TENSILE STRENGTH
mm (inch)mm (inch)mm (inch)N (lbs)
CT-SS-LS-150/7UC150 (5.90)7 (0.276)33(1.30)600 (135)
CT-SS-LS-225/7UC225(8.86)7 (0.276)57(2.20)600 (135)
CT-SS-LM-300/7UC300(11.8)7 (0.276)81(3.20)600 (135)
CT-SS-LM-335/7UC335(13..2)7 (0.276)92(3.60)600 (135)
CT-SS-LM-400/7UC400(15.7)7 (0.276)113(4.40)600 (135)
CT-SS-LM-450/7UC450(17.7)7 (0.276)129(5.10)600 (135)
CT-SS-LM-490/7UC490(19.3)7 (0.276)141(5.60)600 (135)
CT-SS-LM-550/7UC550(21.7)7 (0.276)161(6.30)600 (135)
CT-SS-LM-600/7UC600(23.6)7 (0.276)176(6.90)600 (135)
CT-SS-LM-650/7UC650(25.6)7 (0.276)192(7.60)600 (135)
CT-SS-LM-700/7UC700(27.6)7 (0.276)208(8.02)600 (135)
CT-SS-LM-750/7UC750(29.5)7 (0.276)224(8.80)600 (135)
CT-SS-LM-800/7UC800(31.5)7 (0.276)240(9.40)600 (135)
