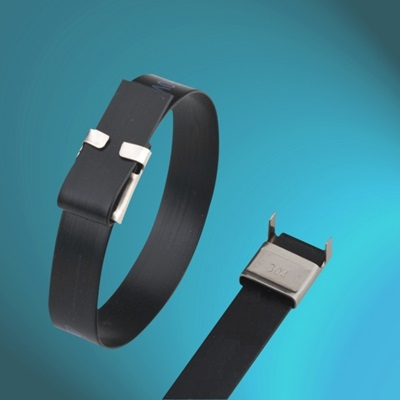

Pvc Semi-Coated Stainless Steel Cable Ties Wing-Locking

MATERIAL:

STAINLESS STEEL 304 OR 316

FEATURE:

THE SS TIES WITH THE UNIQUE BUCKLE LOCKING MECHANISM IS DESIGNED FOR THE APPLICATION WHERE HIGH TENSILE STRENGTH, NON-FLAMMABILITY, HIGH RESISTANCE TO ACETIC ACID, ALKALI ACID   AND SULPHURIC ACID ARE NEEDED.

COLOUR:

BLACK PVC (STANDARD)

STANDARD:

UL & DNV

WORK TEMP.:

-50℃～150℃

OPTION:

PVC OR PA11 COATING

(NYLON 11 FEATURE: PA11 PROVIDES STRONG RESISTANCE TO CHEMICAL, SALT SPRAY AND ABRASION. IT HAS EXCELLENT FLEXIBILITY.)

EASE CODE

LENGTH

WIDTH

MAX. BUNDLE DIAMETER

MIN. TENSILE STRENGTH

mm (inch)

mm (inch)

mm (inch)

N (lbs)

CT-SS-WL-150/9SC-PV

150 (5.90)

9(0.35)

37(1.46)

800(180)

CT-SS-WL-200/9SC-PV

200(7.87)

9(0.35)

50(1.97)

800(180)

CT-SS-WL-250/9SC-PV

250(9.84)

9(0.35)

63(2.48)

800(180)

CT-SS-WL-300/9SC-PV

300(11.8)

9(0.35)

76(2.99)

800(180)

CT-SS-WL-350/9SC-PV

350(13.78)

9(0.35)

89(3.50)

800(180)

CT-SS-WL-400/9SC-PV

400(15.75)

9(0.35)

102(4.02)

800(180)

CT-SS-WL-450/9SC-PV

450(17.72)

9(0.35)

115(4.53)

800(180)

CT-SS-WL-500/9SC-PV

500(19.69)

9(0.35)

128(5.04)

800(180)

CT-SS-WL-550/9SC-PV

550(21.65)

9(0.35)

141(5.55)

800(180)

CT-SS-WL-600/9SC-PV

600(23.62)

9(0.35)

154(6.06)

800(180)

CT-SS-WL-650/9SC-PV

650(25.59)

9(0.35)

167(6.57)

800(180)

CT-SS-WL-700/9SC-PV

700(27.56)

9(0.35)

180(7.09)

800(180)

CT-SS-WL-150/13SC-PV

150 (5.90)

13 (0.51)

37(1.46)

1200(270)

CT-SS-WL-200/13SC-PV

200(7.87)

13 (0.51)

50(1.97)

1200(270)

CT-SS-WL-250/13SC-PV

250(9.84)

13 (0.51)

63(2.48)

1200(270)

CT-SS-WL-300/13SC-PV

300(11.8)

13 (0.51)

76(2.99)

1200(270)

CT-SS-WL-350/13SC-PV

350(13.78)

13 (0.51)

89(3.50)

1200(270)

CT-SS-WL-400/13SC-PV

400(15.75)

13 (0.51)

102(4.02)

1200(270)

CT-SS-WL-450/13SC-PV

450(17.72)

13 (0.51)

115(4.53)

1200(270)

CT-SS-WL-500/13SC-PV

500(19.69)

13 (0.51)

128(5.04)

1200(270)

CT-SS-WL-550/13SC-PV

550(21.65)

13 (0.51)

141(5.55)

1200(270)

CT-SS-WL-600/13SC-PV

600(23.62)

13 (0.51)

154(6.06)

1200(270)

CT-SS-WL-650/13SC-PV

650(25.59)

13 (0.51)

167(6.57)

1200(270)

CT-SS-WL-700/13SC-PV

700(27.56)

13 (0.51)

180(7.09)

1200(270)

CT-SS-WL-200/16SC-PV

200(7.87)

16(0.63)

50(1.97)

1500(337)

CT-SS-WL-250/16SC-PV

250(9.84)

16(0.63)

63(2.48)

1500(337)

CT-SS-WL-300/16SC-PV

300(11.8)

16(0.63)

76(2.99)

1500(337)

CT-SS-WL-350/16SC-PV

350(13.78)

16(0.63)

89(3.50)

1500(337)

CT-SS-WL-400/16SC-PV

400(15.75)

16(0.63)

102(4.02)

1500(337)

CT-SS-WL-450/16SC-PV

450(17.72)

16(0.63)

115(4.53)

1500(337)

CT-SS-WL-500/16SC-PV

500(19.69)

16(0.63)

128(5.04)

1500(337)

CT-SS-WL-550/16SC-PV

550(21.65)

16(0.63)

141(5.55)

1500(337)

CT-SS-WL-600/16SC-PV

600(23.62)

16(0.63)

154(6.06)

1500(337)

CT-SS-WL-650/16SC-PV

650(25.59)

16(0.63)

167(6.57)

1500(337)

CT-SS-WL-700/16SC-PV

700(27.56)

16(0.63)

180(7.09)

1500(337)
